Driver Seat Control Unit (With Automatic Drive Positioner)

DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)

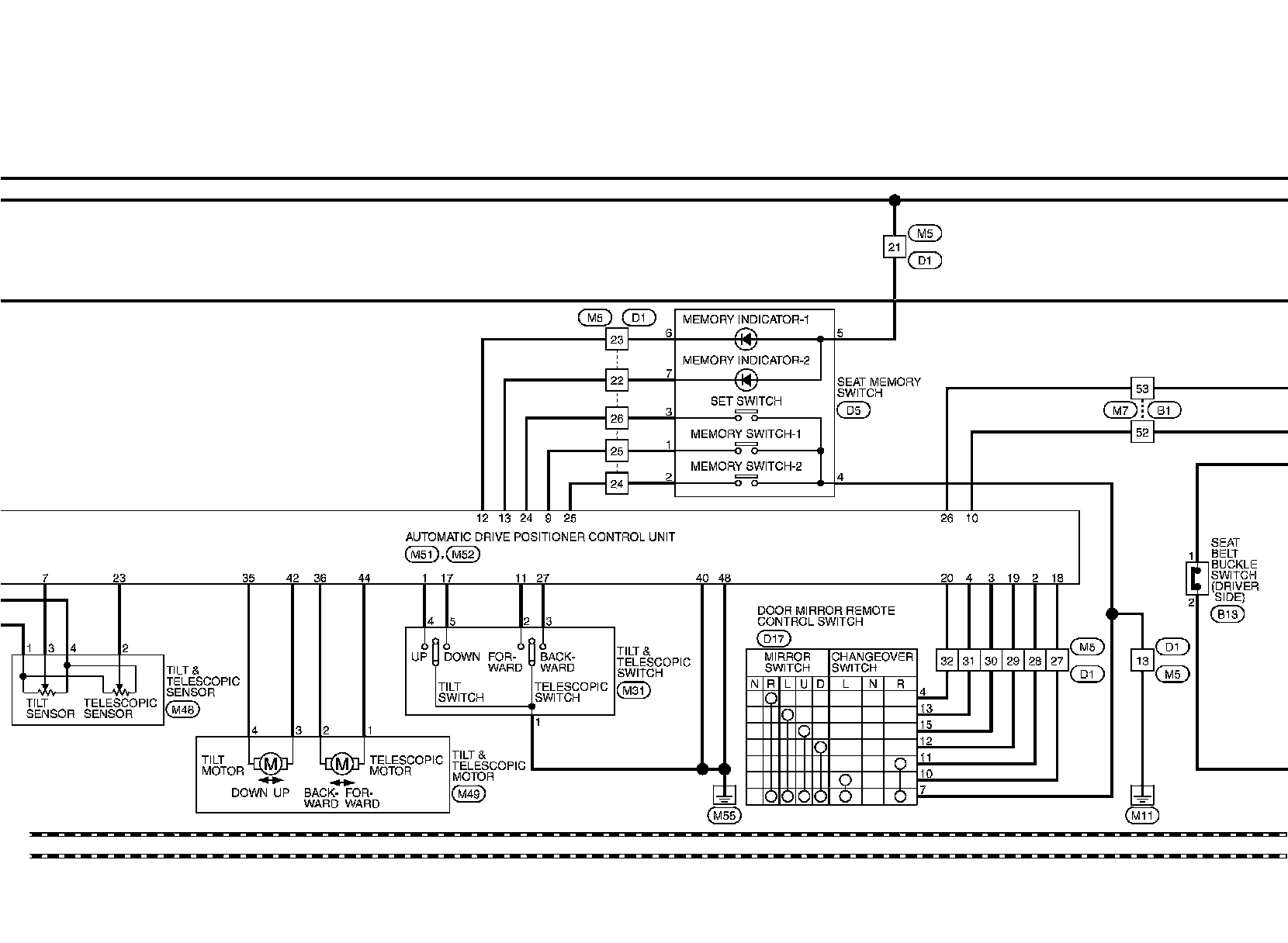

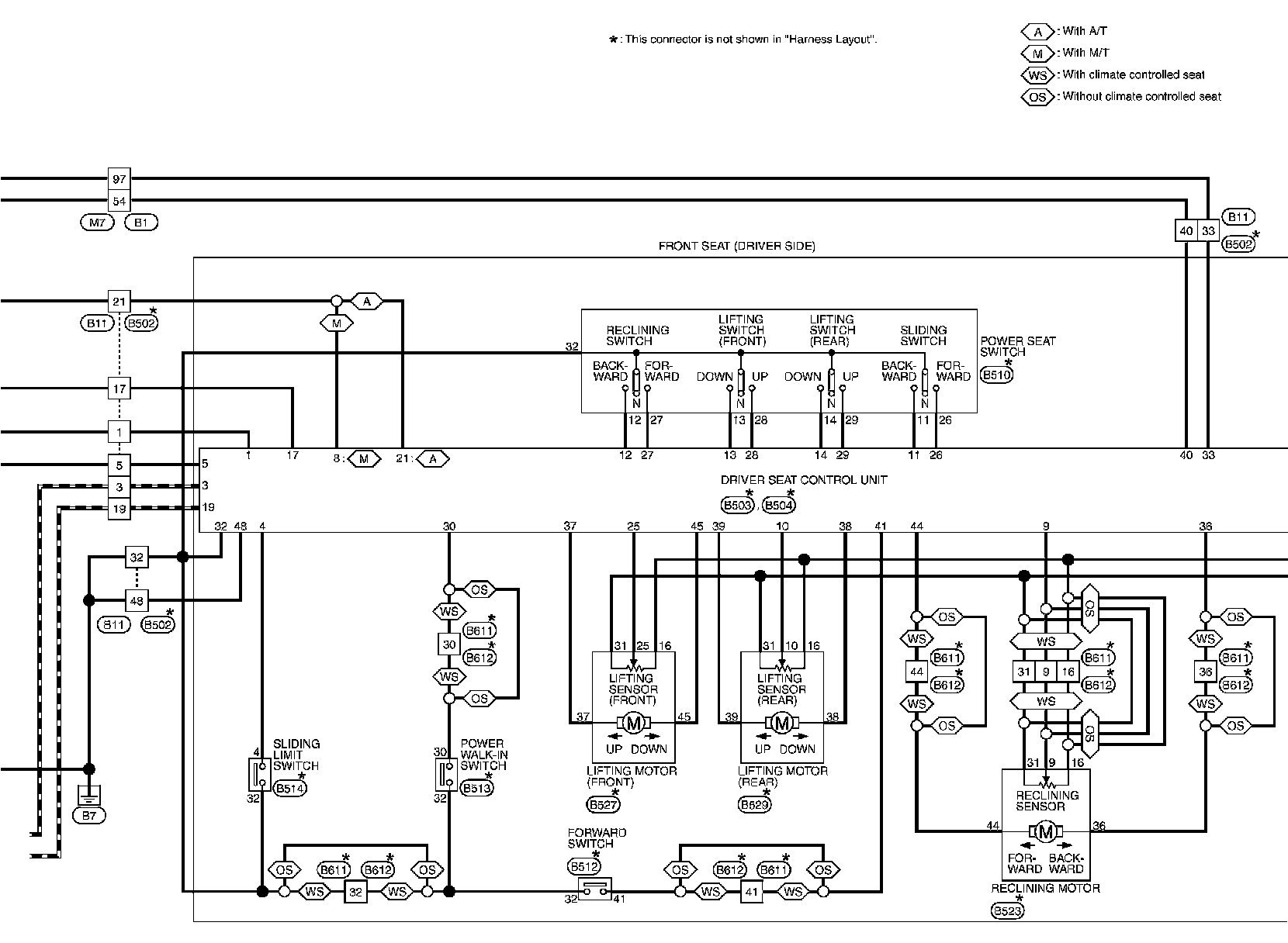

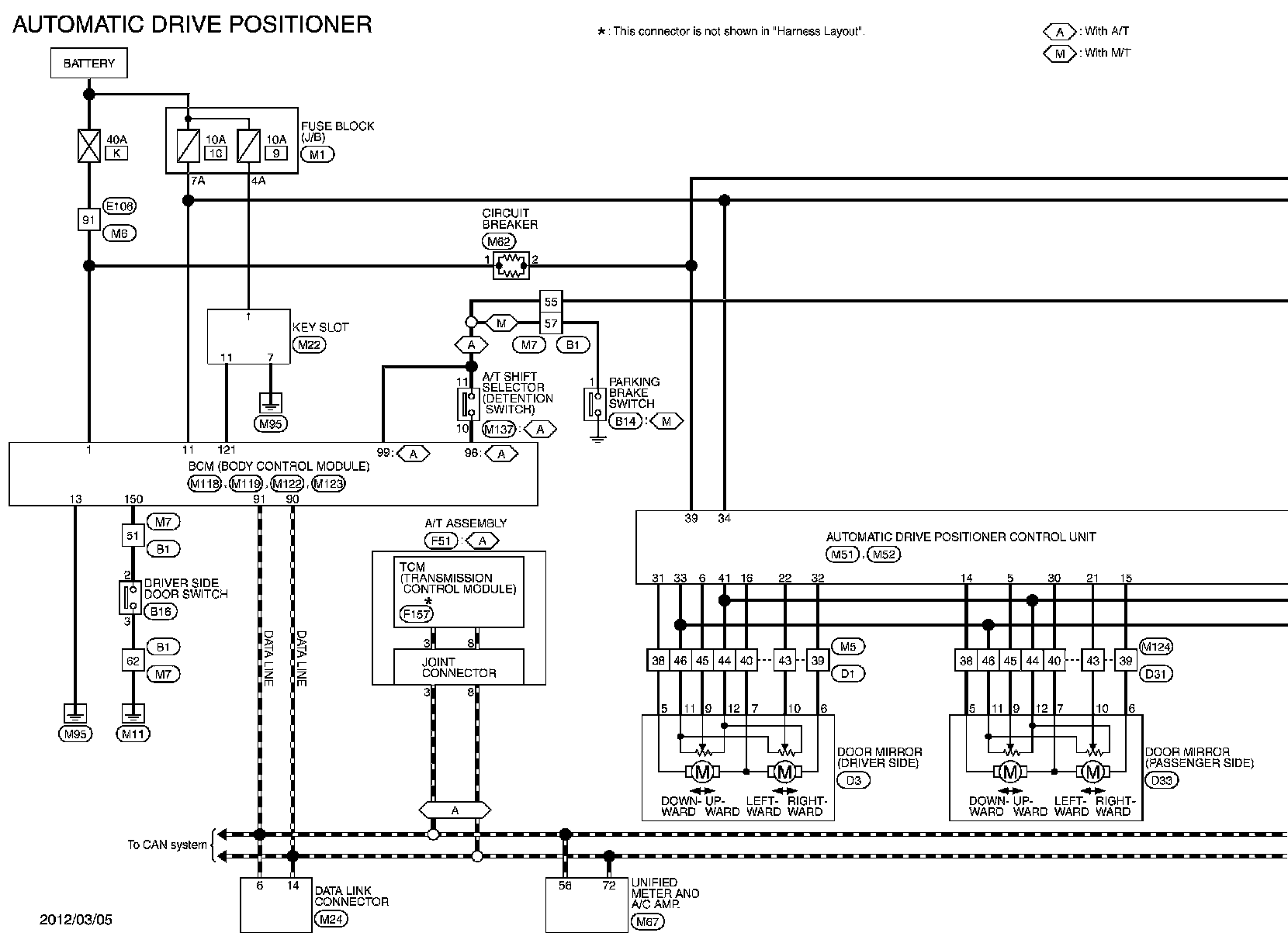

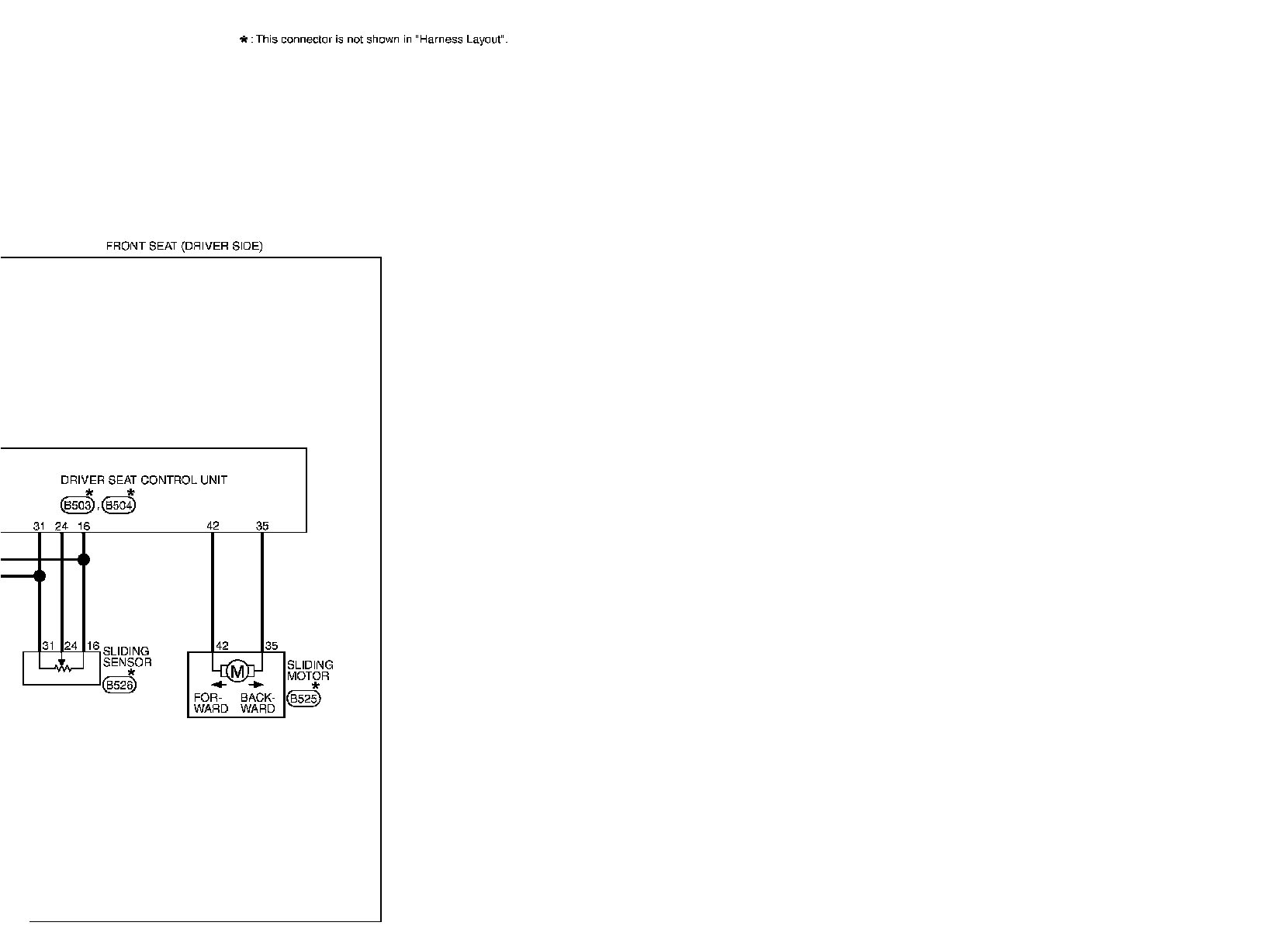

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
