CONSULT Function (BCM)

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)


BCM CONSULT FUNCTION

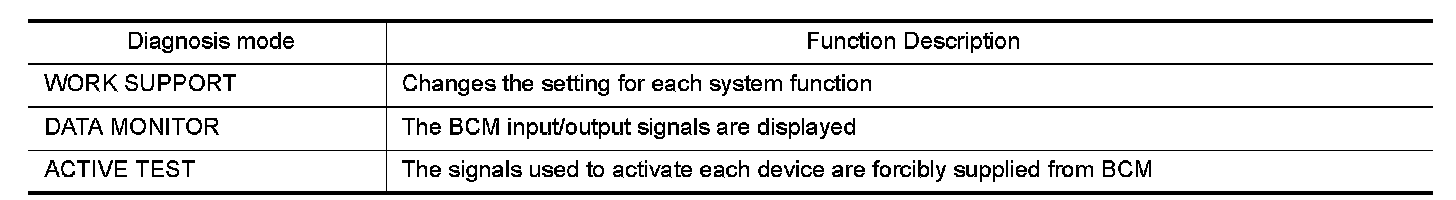

CONSULT performs the following functions via CAN communication with BCM.

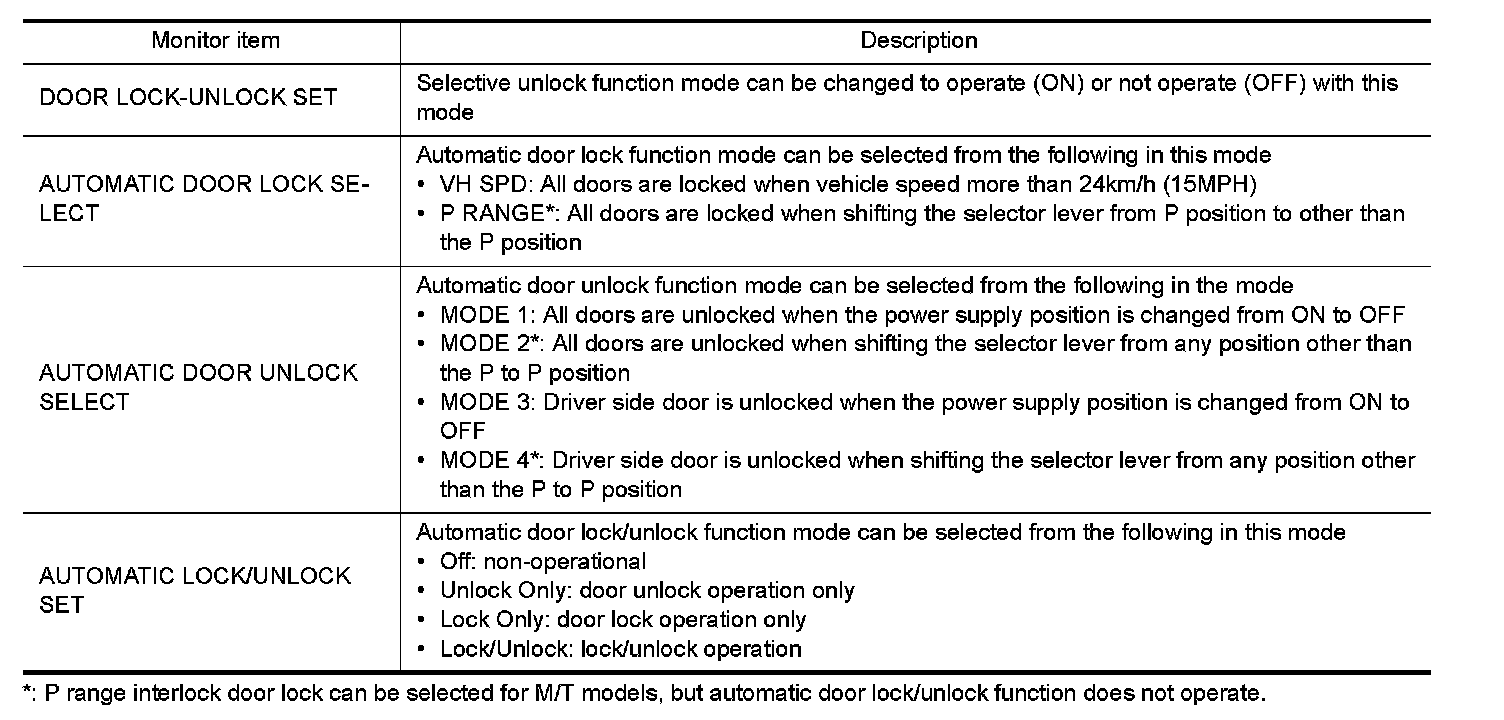

WORK SUPPORT

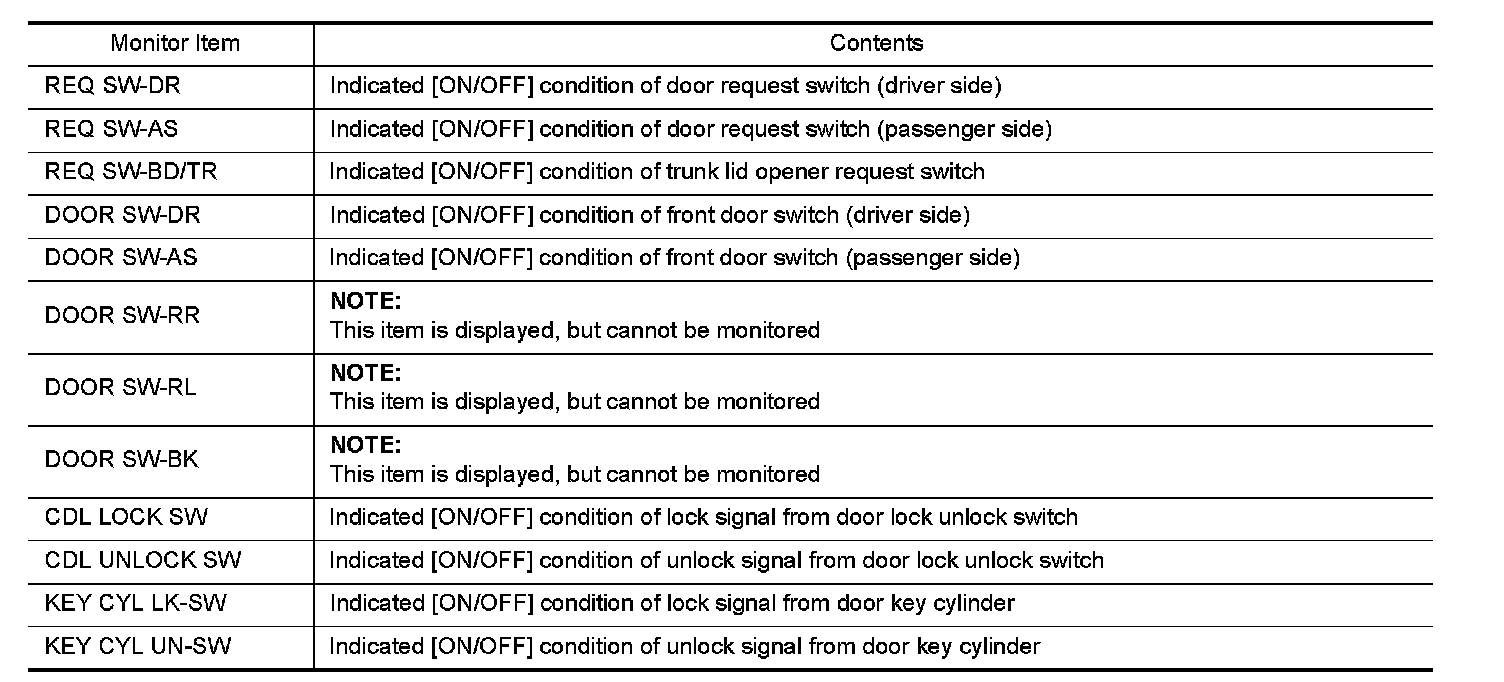

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

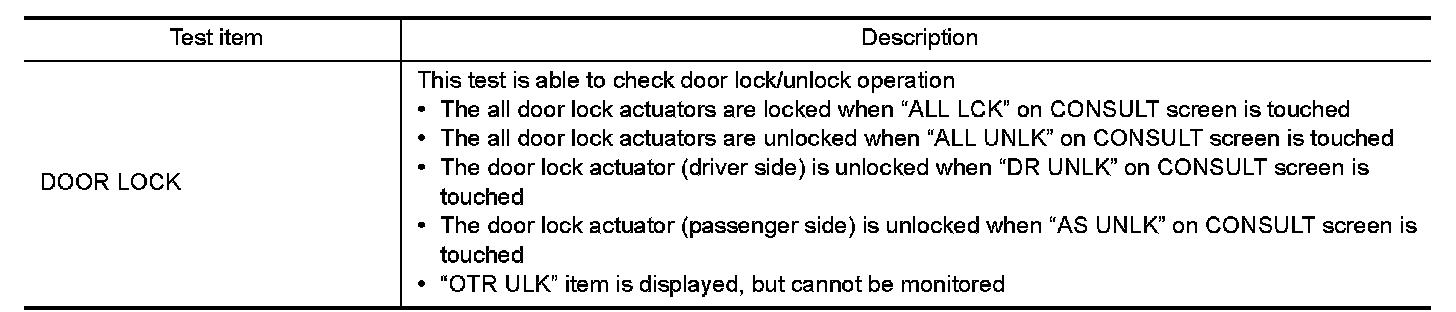

ACTIVE TEST
