Removal and Installation




OUTSIDE KEY ANTENNA

Removal and Installation


REMOVAL

1.Remove the rear bumper. Refer to "Removal and Installation" Removal and Installation.

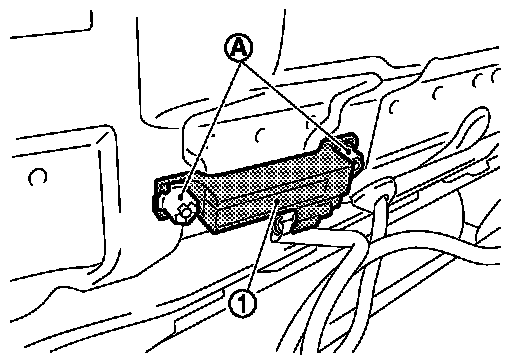

2.Remove the outside key antenna (rear bumper) mounting nuts (A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION

Install in the reverse order of removal.
