Removal and Installation

INSIDE KEY ANTENNA

INSTRUMENT CENTER : Removal and Installation


REMOVAL

1.Remove the console finisher. Refer to "A/T MODELS : Removal and Installation" Removal and Installation A/T Models.

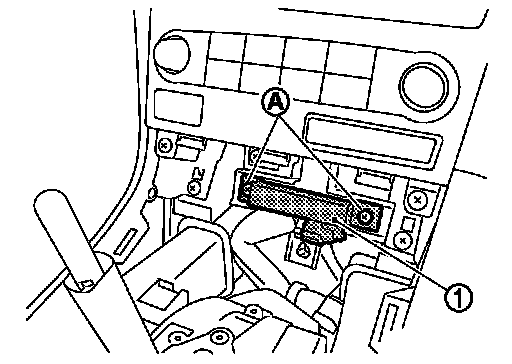

2.Remove the key slot mounting screw (A), and then remove inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.
