Removal and Installation

DOOR LOCK

DOOR LOCK : Removal and Installation


REMOVAL


WARNING:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.
- Never use the air tools or electric tools for servicing.
1.Remove the door finisher.
2.Remove the door glass and door module assembly.
- Door glass: Refer to "Removal and Installation" Service and Repair.
- Door module: Refer to "Removal and Installation" Removal and Installation.

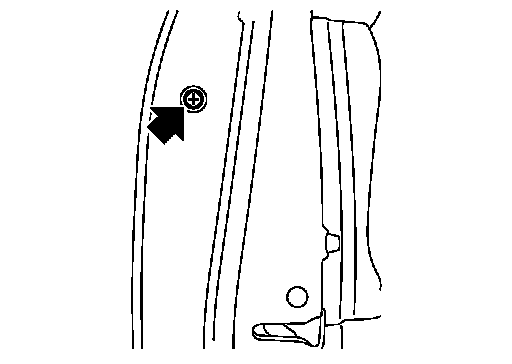

3.Remove the door side grommet, and loosen the door key cylinder assembly (driver side) and outside handle escutcheon (passenger side) TORX bolt from grommet hole.

CAUTION:





Never forcibly remove the TORX bolt.
4.Disconnect the door antenna and door request switch connector and remove the harness clamp.
5.Reach in to separate the key rod connection (on the handle).

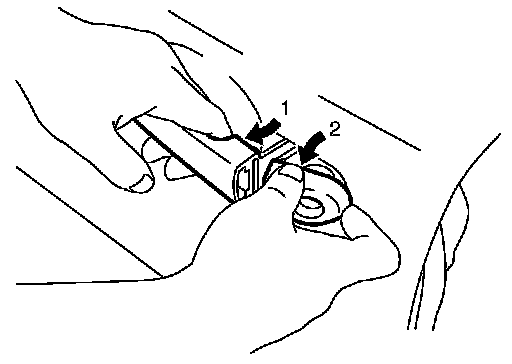

6.While pulling the outside handle, remove the door key cylinder assembly.

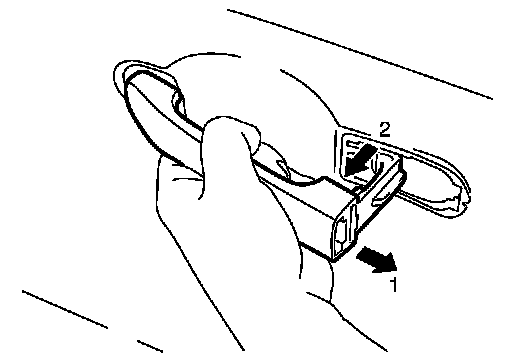

7.Slide toward rear of vehicle, and pull forward to remove the outside handle.

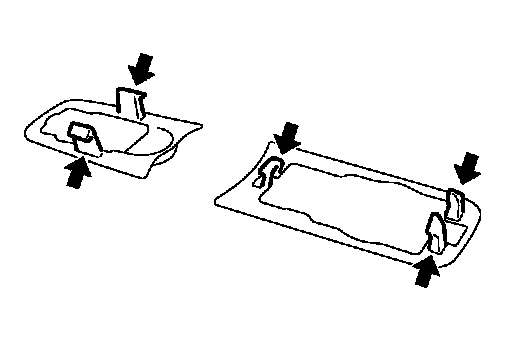

8.Remove the front gasket and rear gasket.
9.Remove the TORX bolts, and remove the door lock assembly.





10.Remove the TORX bolt of the outside handle bracket.

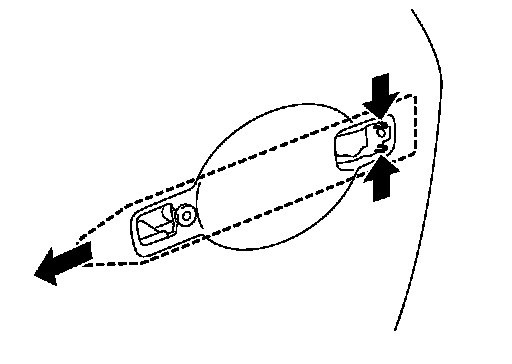

11.While pulling the outside handle bracket, slide toward rear of vehicle to remove the outside handle bracket.
12.Disconnect the door lock actuator connector and remove the door lock assembly.

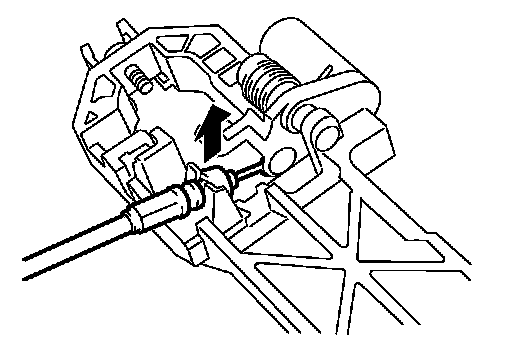

13.Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
- To install each rod, rotate the rod holder until a click is felt.
- When performing this operation, DTC of air bag (B1262 / B1257) may be displayed.
- When completing this operation, check that no DTC other than DTC of air bag (B1262 / B1257) is disdisplayed and erase self-diagnosis result of air bag, using CONSULT-III.
- When DTC other than the above is detected, perform diagnosis according to each DTC.
- When DTC other than DTC of air bag (B1262 / B1257) is detected, perform diagnosis according to each DTC. Refer to "DTC Index" Testing and Inspection.
