Removal and Installation

FLOOR TRIM

Removal and Installation


REMOVAL

1.Remove front seat assembly (LH/RH). Refer to "Removal and Installation" Removal and Installation.
2.Remove rear seat cushion. Refer to "Removal and Installation" Removal and Installation.
3.Remove accelerator pedal pad. Refer to "Removal and Installation" Removal and Installation.

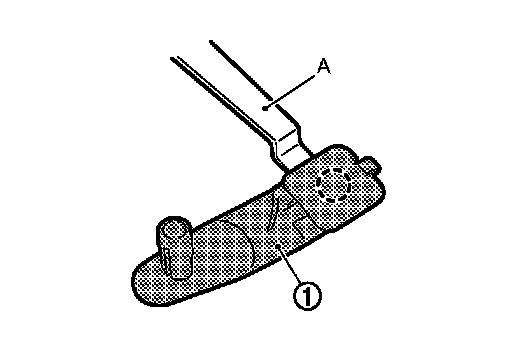

4.Disengage clip of floor hook (1) with remover tool (A).





5.Remove foot grille. Refer to "FOOT GRILLE : Removal and Installation" Foot Grille.
6.Remove front seat belt floor anchor bolt (LH/RH). Refer to "SEAT BELT BUCKLE : Exploded View" Exploded View.
7.Remove center console assembly.
Refer to "A/T MODELS : Removal and Installation" Removal and Installation (A/T models).
Refer to "M/T MODELS : Removal and Installation" Removal and Installation (M/T models).
8.Remove front kicking plate inner (LH/RH), dash side finisher (LH/RH), and body side welt (LH/RH).
Refer to "Removal and Installation" Removal and Installation.
9.Remove instrument passenger lower cover and instrument side panel (LH/RH).
Refer to "A/T MODELS : Removal and Installation" Removal and Installation A/T Models (A/T models).
Refer to "M/T MODELS : Removal and Installation" Removal and Installation M/T Models (M/T models).
10.Remove YAW RATE/G-SENSOR.
Refer to "Removal and Installation" Removal and Installation.
11.Remove diagnosis sensor unit.
Refer to "Removal and Installation" Removal and Installation.
12.Remove console rear bracket.
Refer to "A/T MODELS : Removal and Installation" Removal and Installation (A/T models).
Refer to "M/T MODELS : Removal and Installation" Removal and Installation (M/T models).
13.Remove floor harness mounting clamps.
14.Remove floor trim mounting clips and fixing nuts.
15.Remove floor trim from floor trim fixing clips.
16.Remove partially the bottom side of rear side finisher, and the pull out floor carpet to remove

INSTALLATION

Install in the reverse order of removal.
