Removal and Installation

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation


REMOVAL

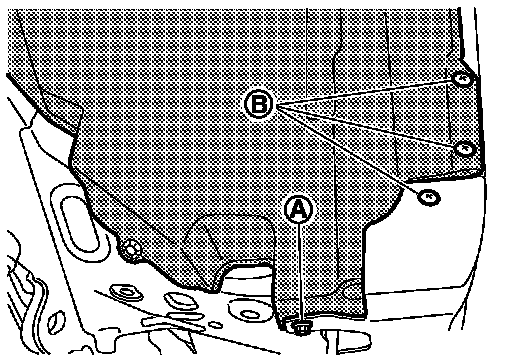

1.Remove bolt (A) of fender protector (rear) rear end.
2.Remove screws (B) of fender protector (rear) located center mud guard and front fender.
3.Remove clips of fender protector (rear).
4.Remove fender clip from wheelhouse arches, and then remove fender protector (rear) from wheel house.

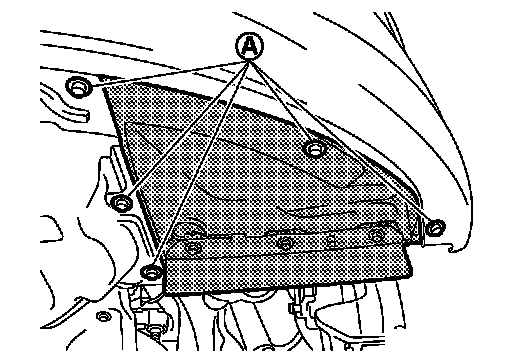

5.Remove bolts (A) of fender protector (front) located engine under cover and front bumper.
6.Remove fender protector (front) mounting clips.
7.Remove fender clip from wheel house arches, and then remove fender protector (front) from wheel house.
8.Remove the following parts after removing front fender protector.
- Fairing
- Fender clip

INSTALLATION

Install in the reverse order of removal.
