Component Tests and General Diagnostics

FUEL LID LOCK ACTUATOR

Description

Locks/unlocks the fuel filler lid with the signal from BCM.


Component Function Check


1. CHECK FUNCTION

1.Use CONSULT to perform BCM "Active Test" ("DOOR LOCK").
2.Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.
Is the inspection result normal?
YES- Fuel lid lock actuator is OK.
NO- Refer to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK FUEL LID LOCK ACTUATOR INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect fuel lid lock actuator connector.

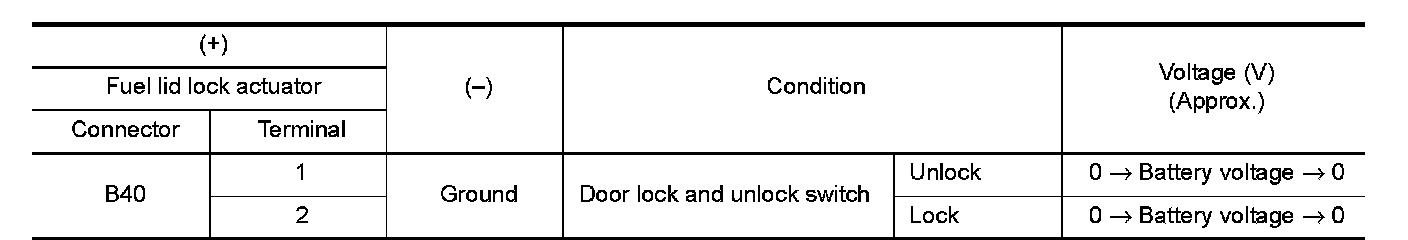

3.Check voltage between fuel lid lock actuator harness connector and ground.





Is the inspection result normal?
YES- Replace fuel lid lock actuator. Refer to "Removal and Installation" Removal and Installation.
NO- GO TO 2.

2. CHECK FUEL LID LOCK ACTUATOR CIRCUIT

1.Disconnect BCM connector and all door lock assembly connector.

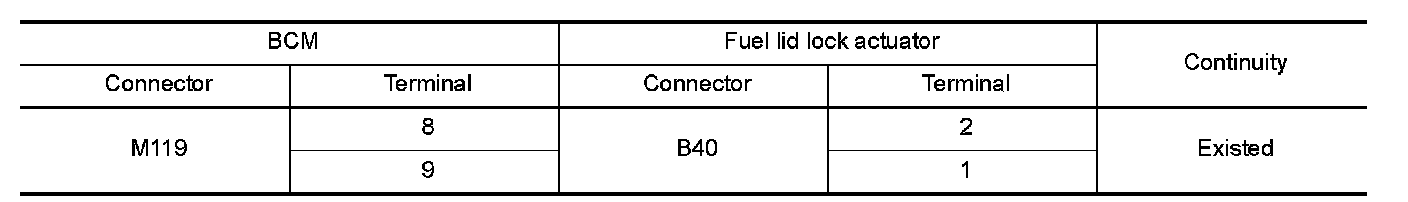

2.Check continuity between BCM harness connector and fuel lid lock actuator harness connector.

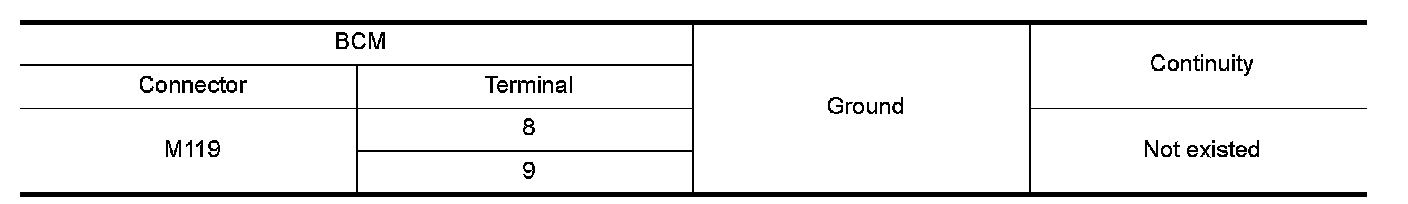

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- Replace BCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace harness.
