With Navigation

AV CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

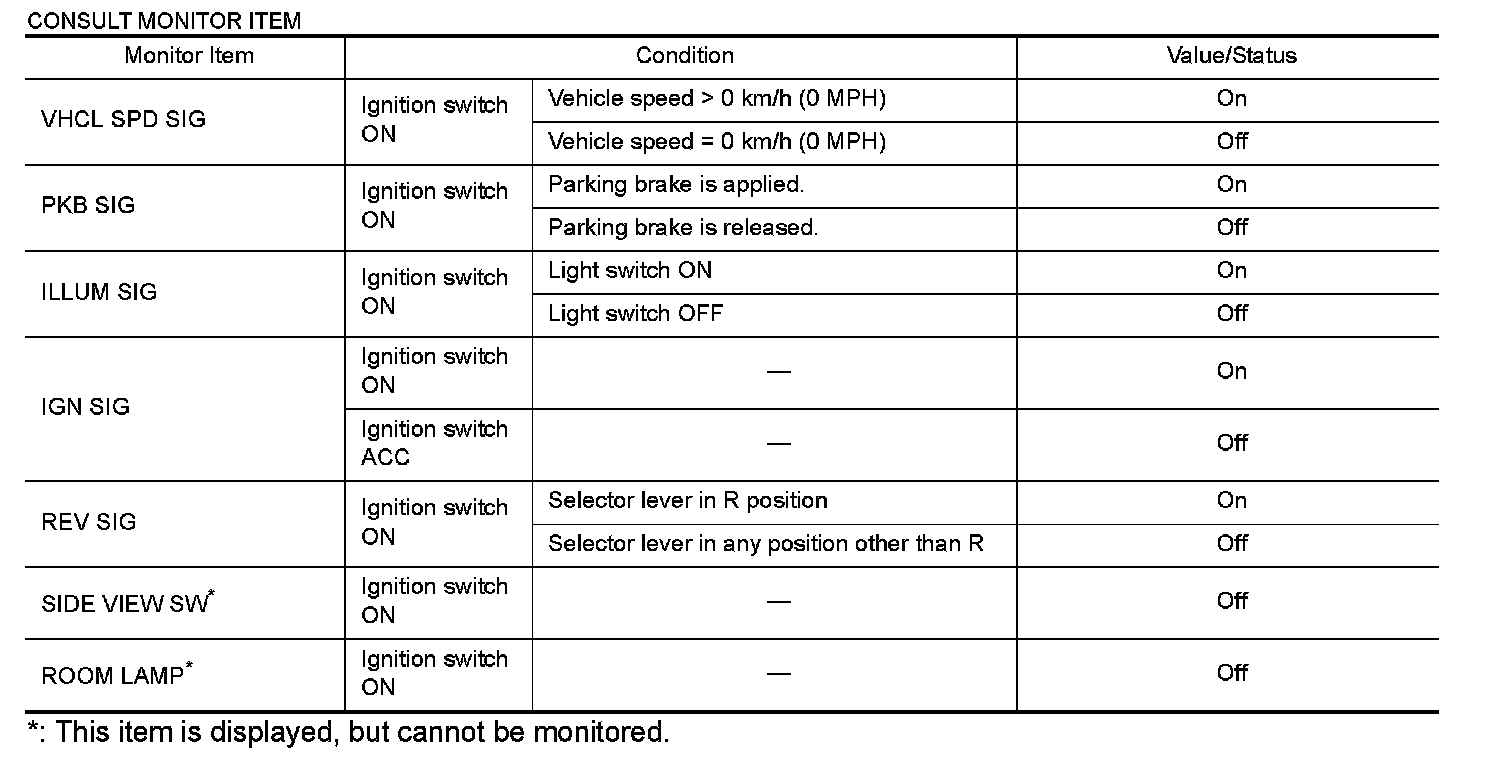

CONSULT MONITOR ITEM





*: This item is displayed, but cannot be monitored.

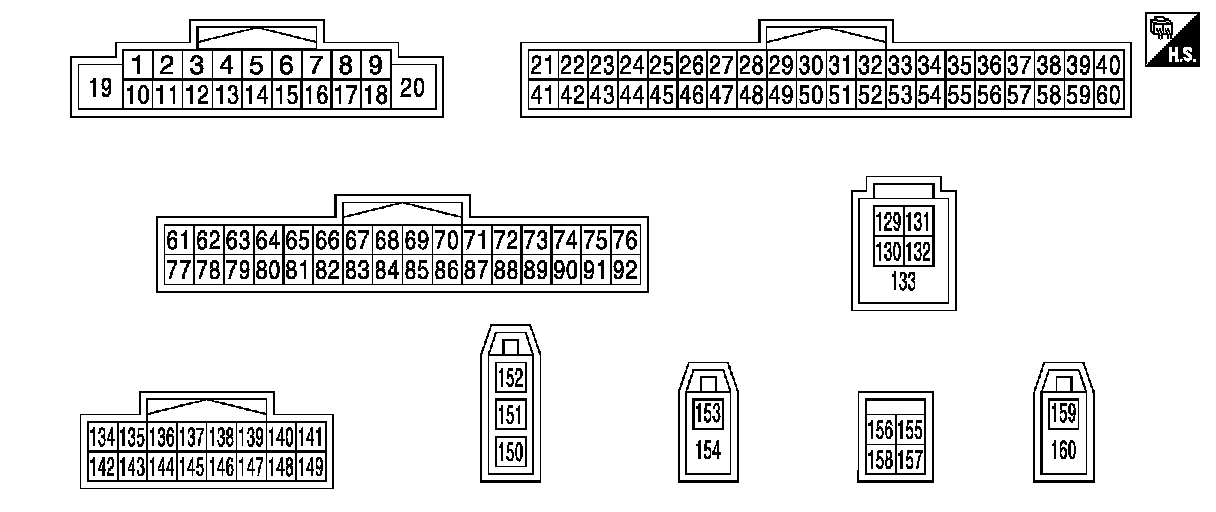

TERMINAL LAYOUT

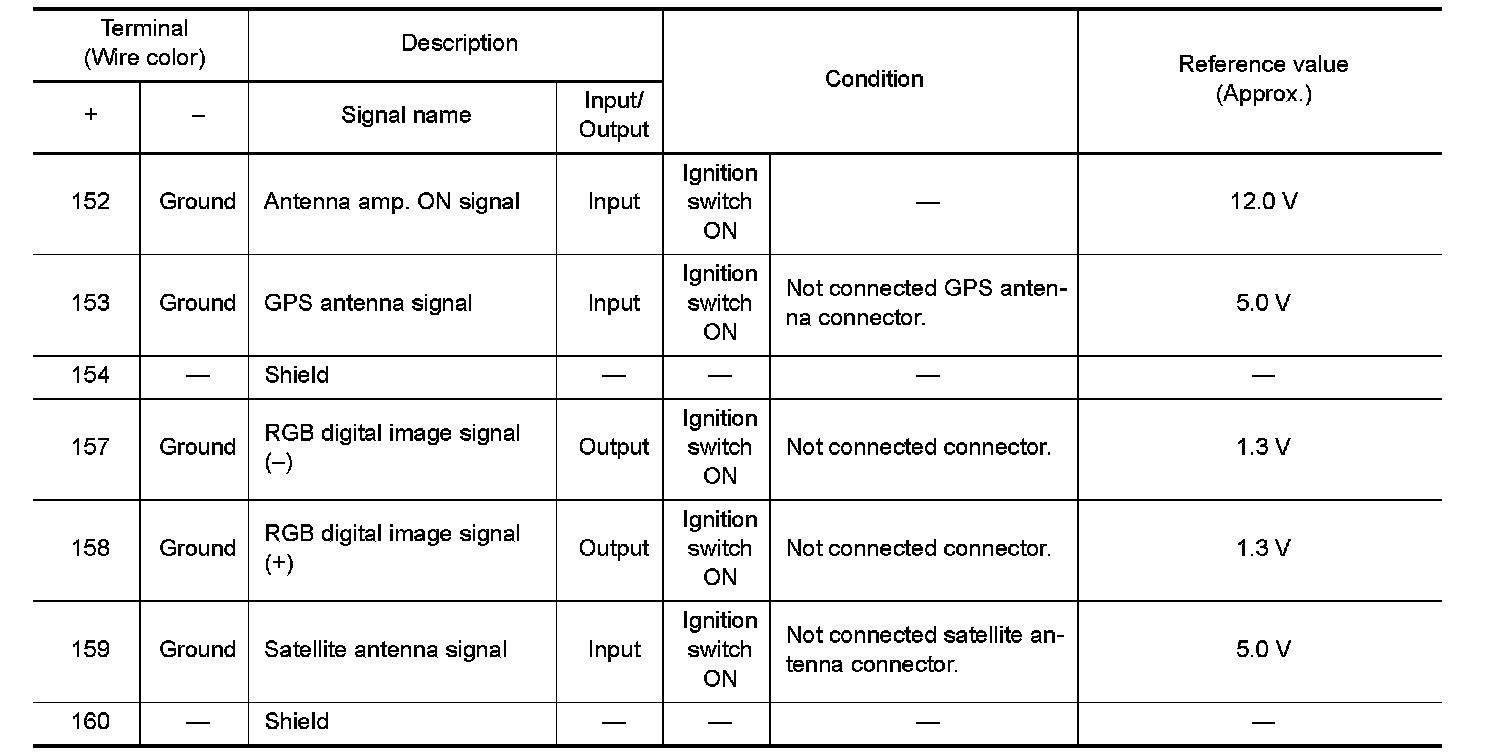

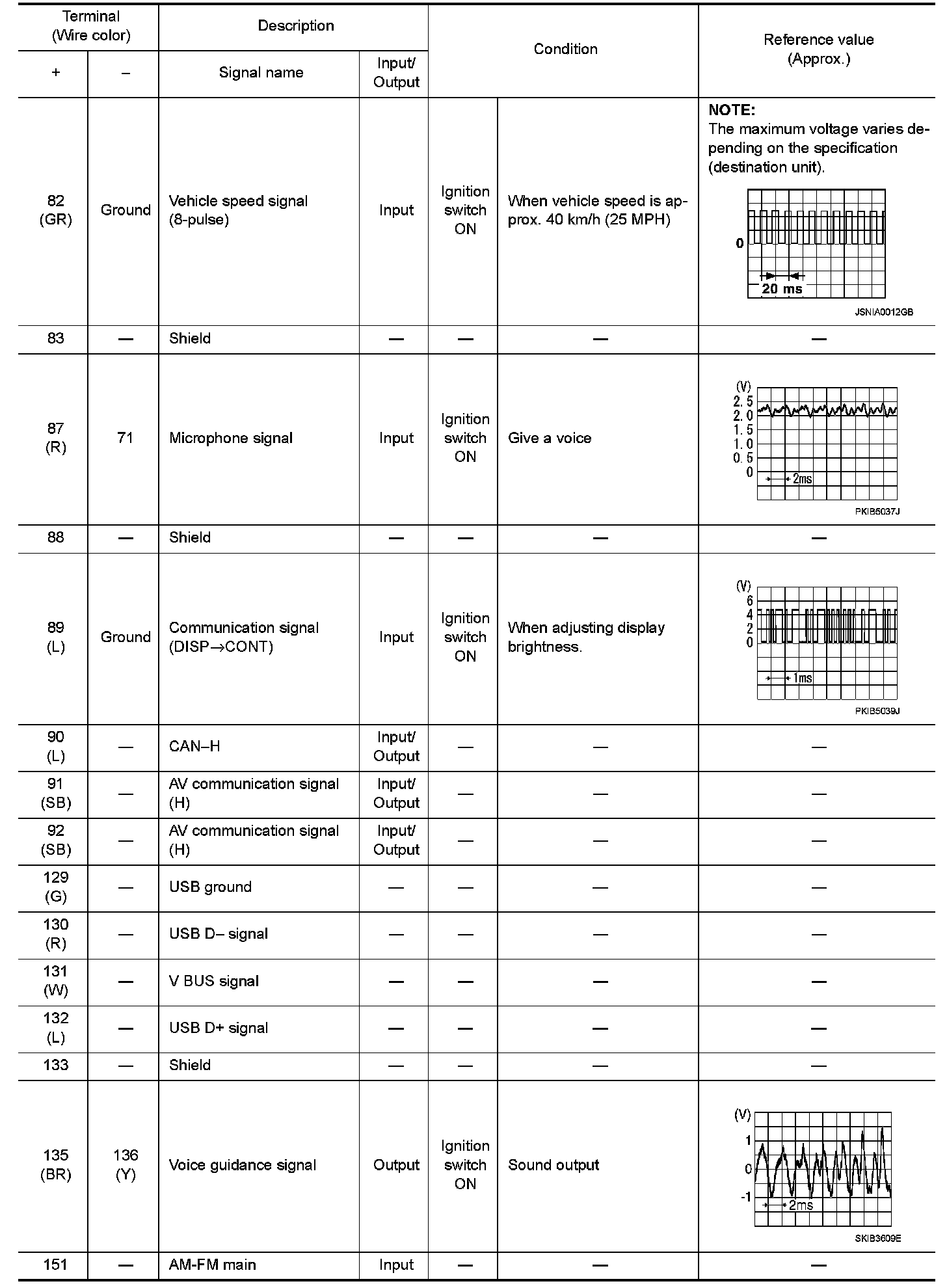

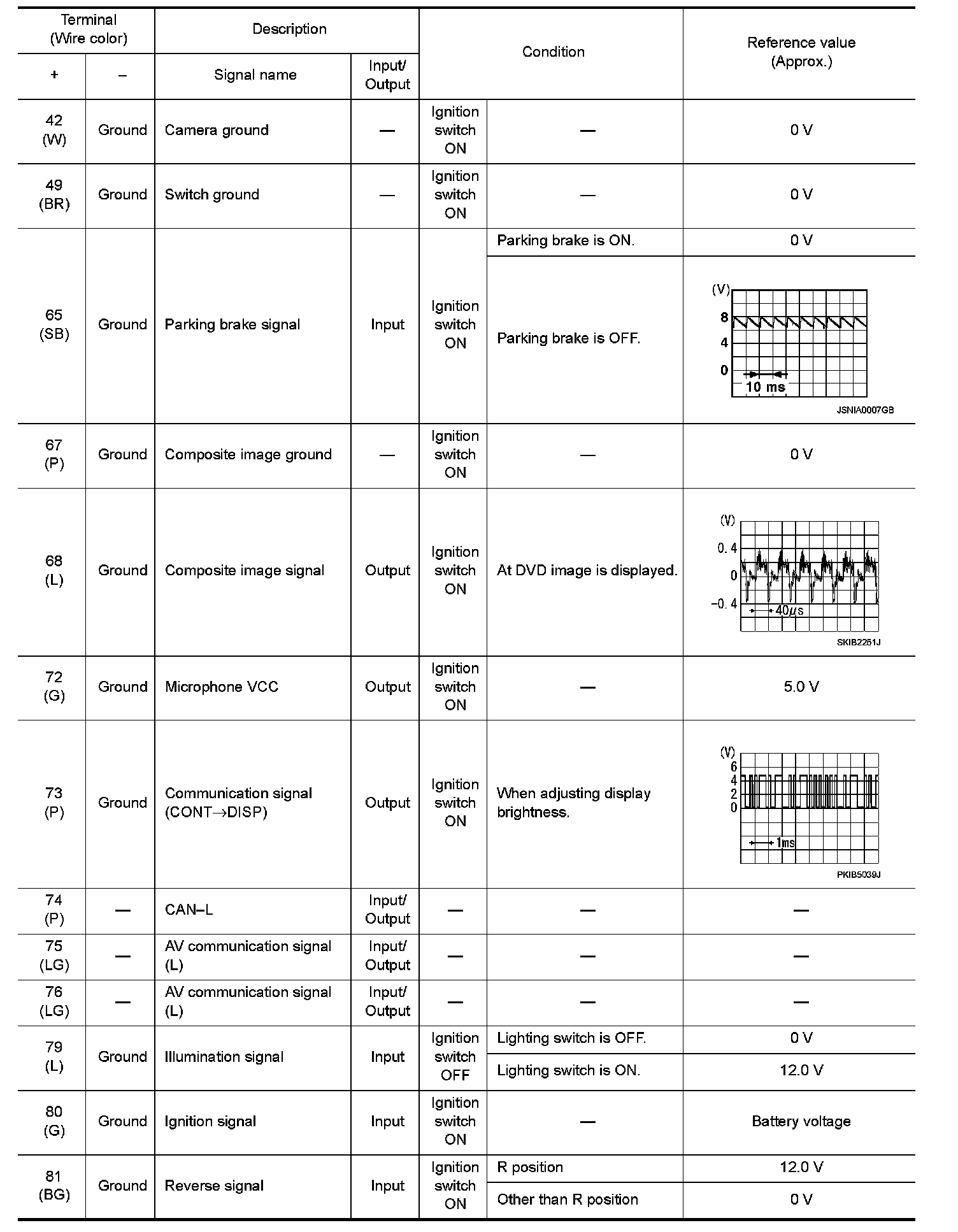

PHYSICAL VALUES
