Base Audio

PRESET SWITCH

Removal and Installation


REMOVAL

1.Remove cluster lid C. Refer to "A/T MODELS : Exploded View" Exploded View A/T Models (A/T models) or "M/T MODELS : Exploded View" Exploded View M/T Models (M/T models).

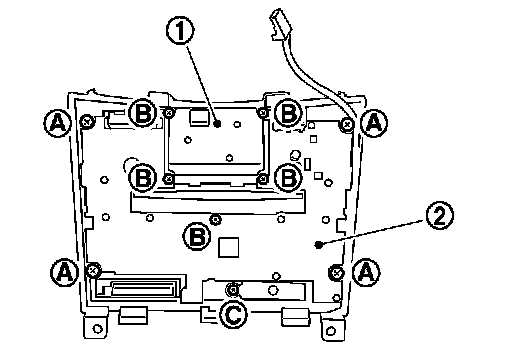

2.Remove preset switch (2) from cluster lid C. Remove preset switch screws (A), (B) and (C), remove preset switch (2) from cluster lid C.






INSTALLATION

Install in the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch to get caught in between AV control unit and preset switch.
