Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Description and Operation >> Audio System >> Bose Audio >> Without Navigation

Without Navigation




COMPONENT PARTS

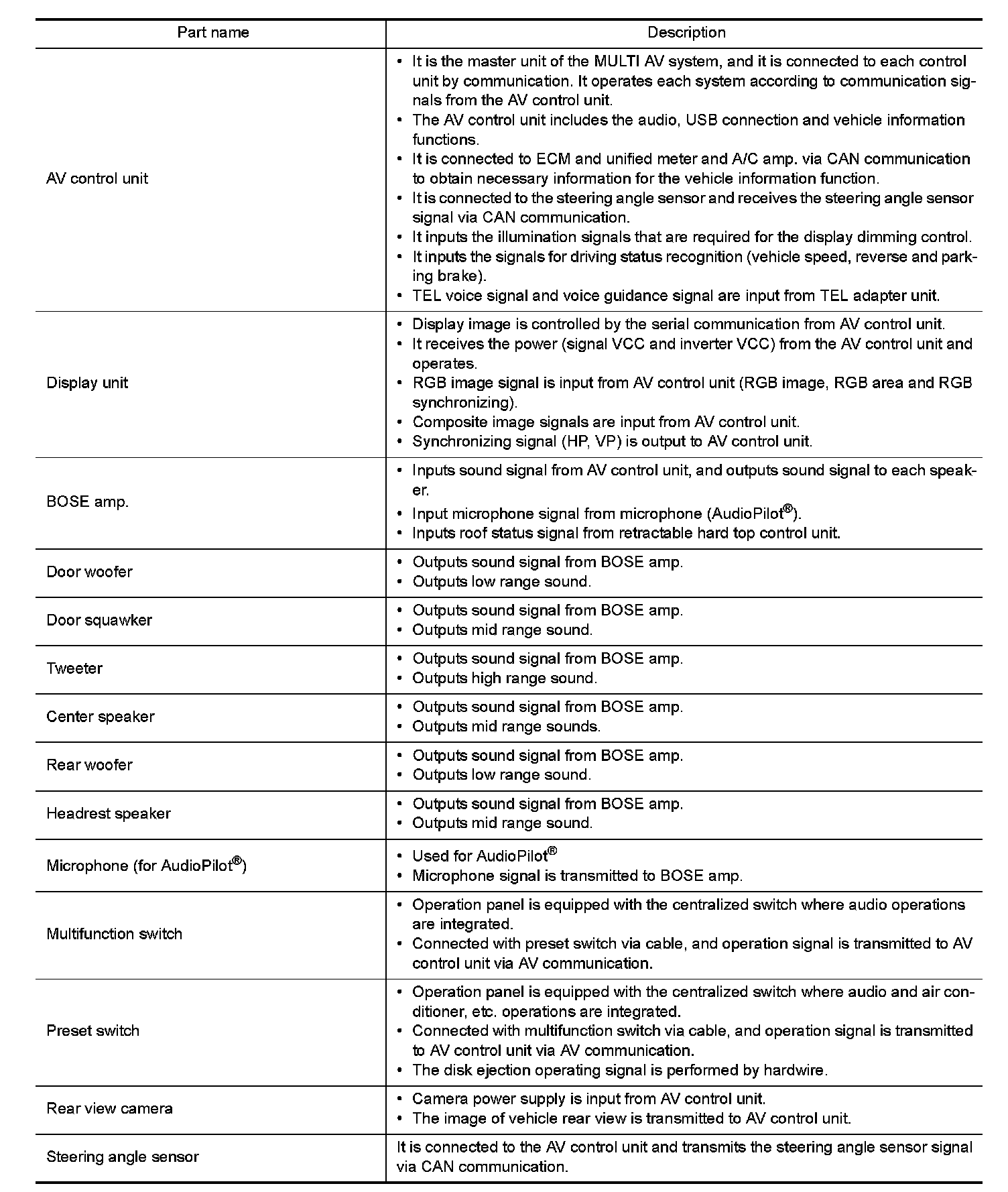

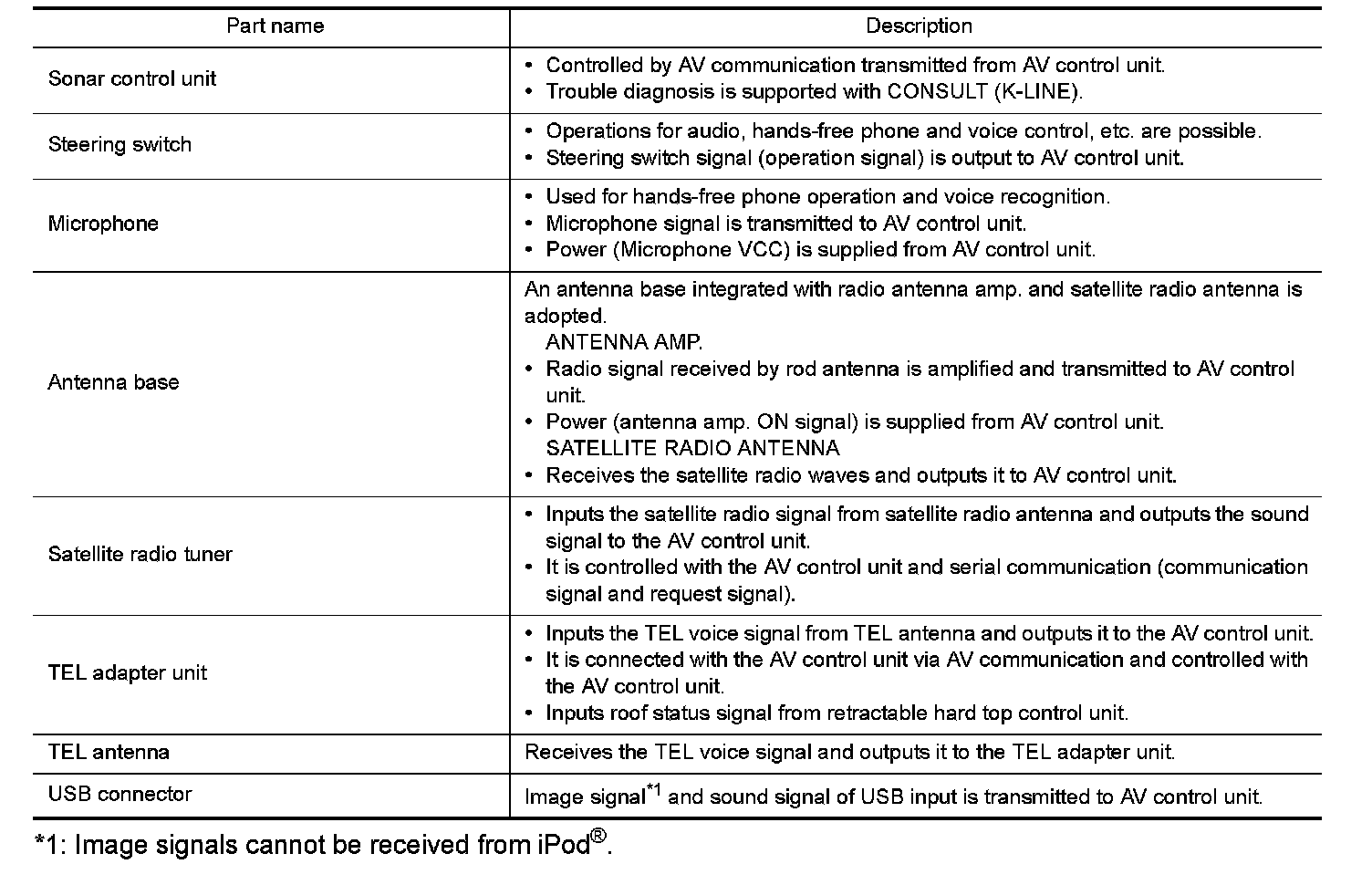

Component Description











*1: Image signals cannot be received from iPod�.
