Diagnosis System (Driver Seat C/U)

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

CONSULT Function

The automatic drive positioner system can be checked and diagnosed for component operation using CONSULT.

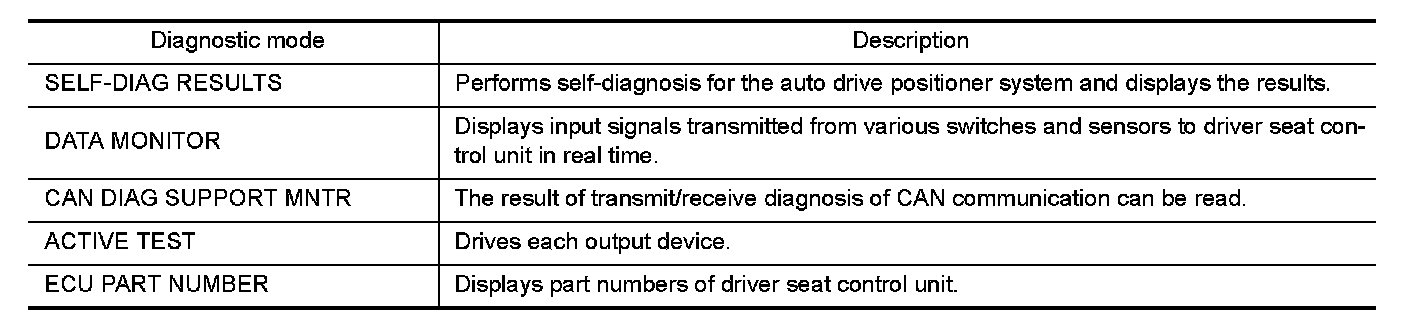

APPLICATION ITEMS







SELF DIAGNOSTIC RESULTS

Refer to "DTC Index" Testing and Inspection.

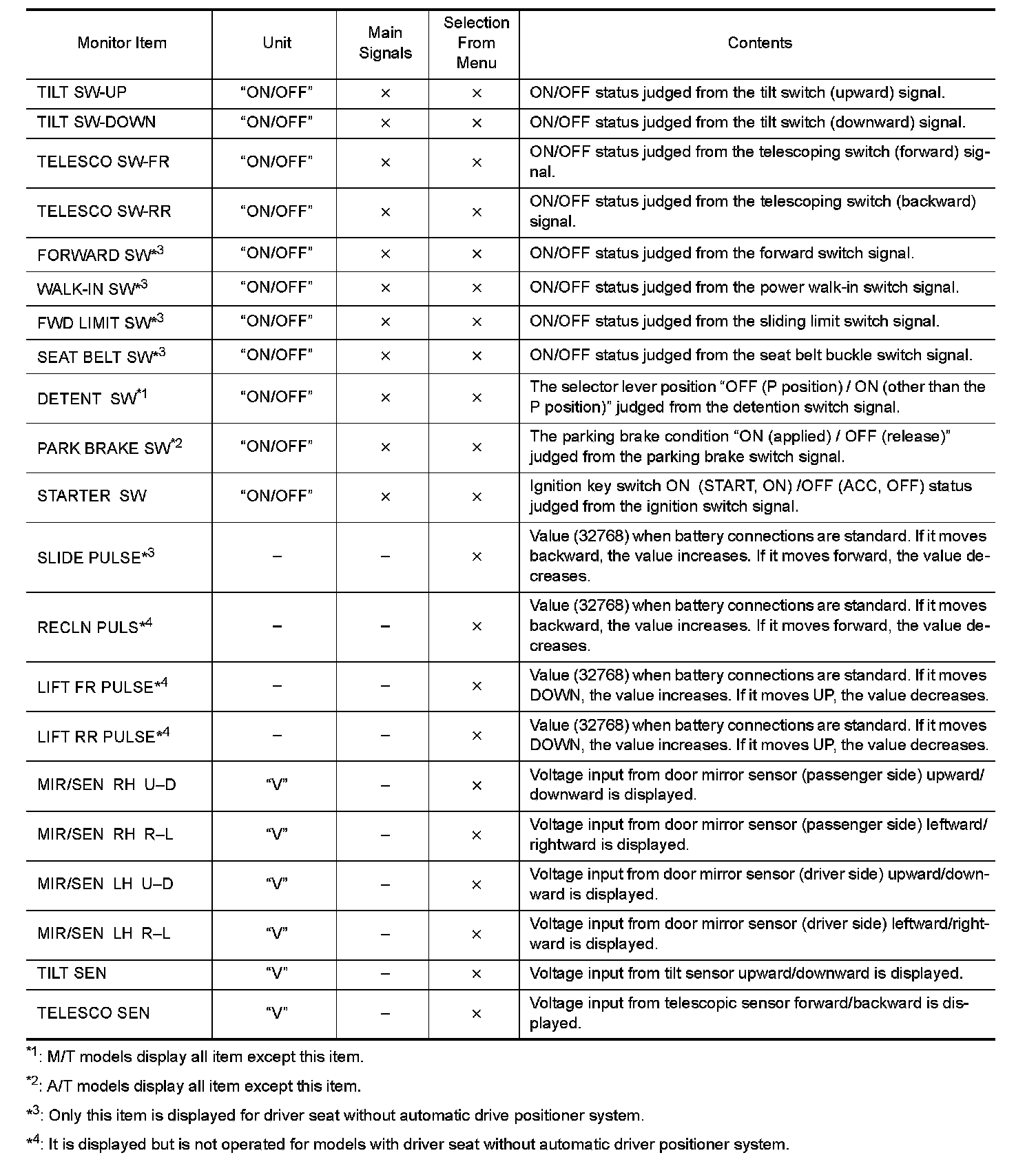

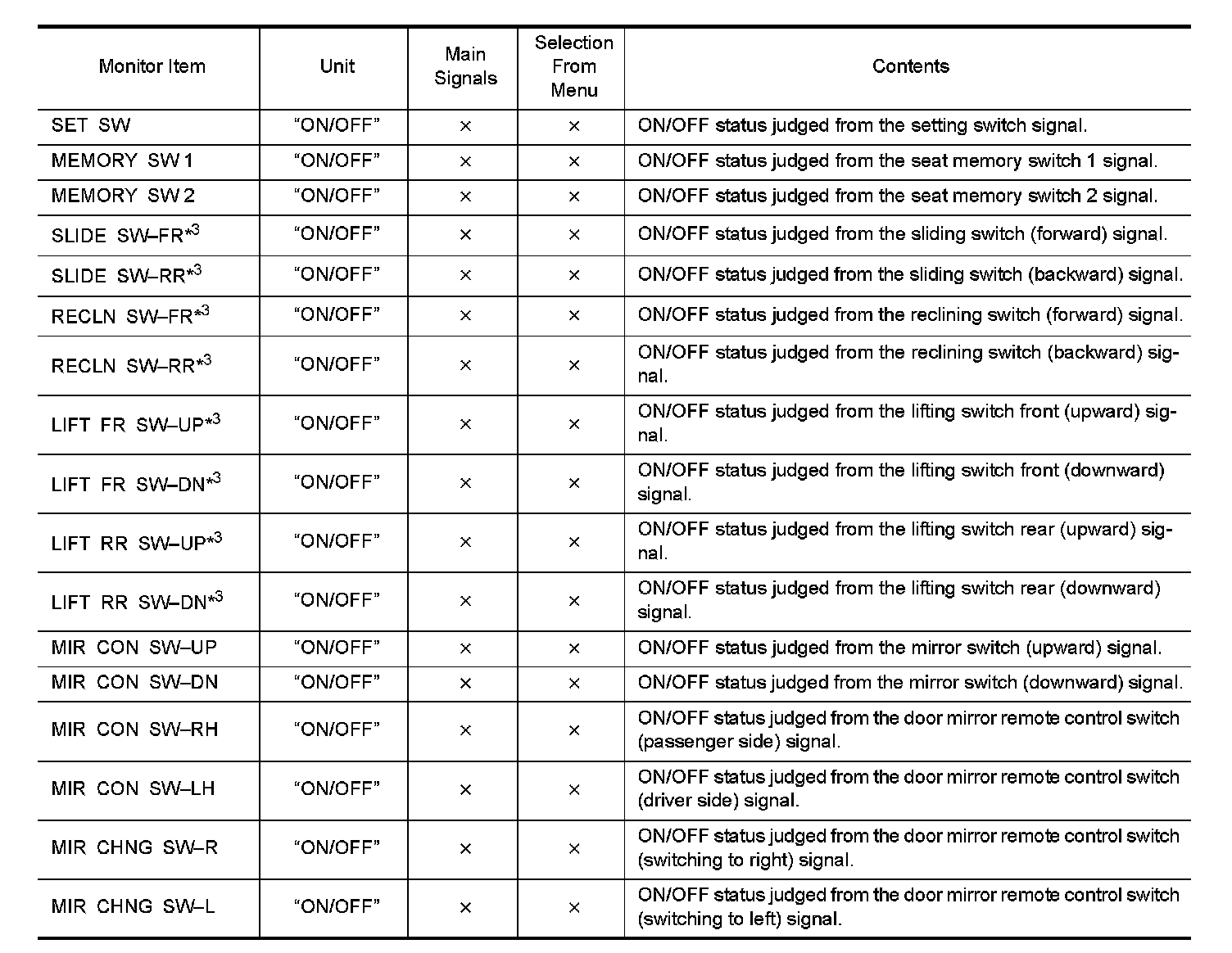

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

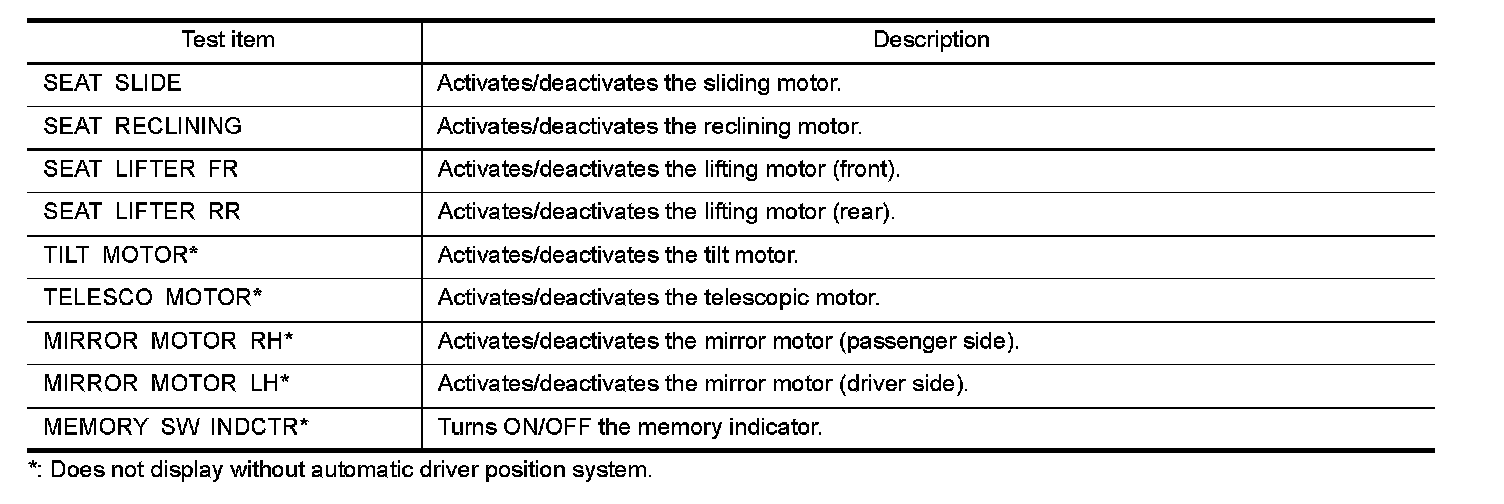

ACTIVE TEST


CAUTION:
When driving vehicle, never perform active test.
