Sonar Control Unit




SONAR CONTROL UNIT

Fail-Safe

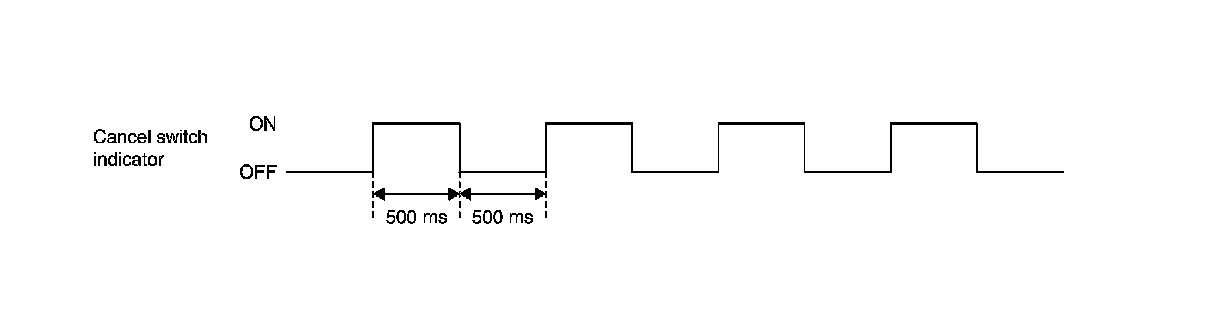

The warning buzzer function shuts off and the cancel switch indicator blinks when the sensor system error is detected.
