R Range Signal Circuit

R RANGE SIGNAL CIRCUIT

Description

The sonar control unit turns the sonar system activation OFF when inputting the reverse signal.


Component Function Check


1. SONAR CONTROL UNIT DATA MONITOR INSPECTION

Check "REVERSE RANGE" with "DATA MONITOR" of "SONAR".





- INSPECTION END


Diagnosis Procedure


1. CHECK P RANGE SIGNAL

1.Turn ignition switch ON.

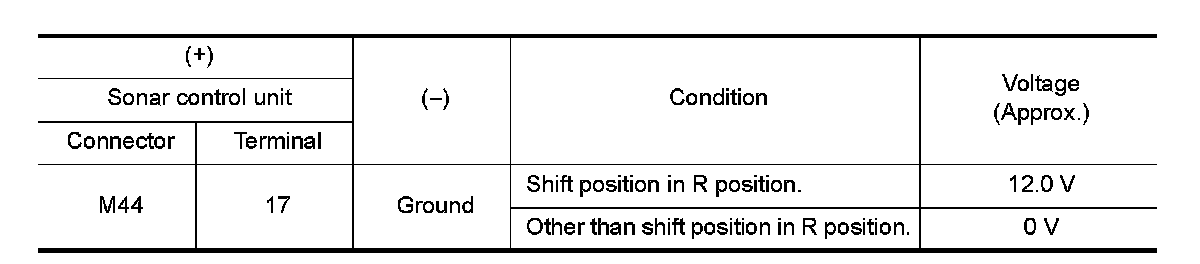

2.Check voltage between sonar control unit harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
