Base Audio

TEL ADAPTER UNIT

Removal and Installation


REMOVAL

1.Remove trunk floor spacer RH. Refer to "Exploded View" Exploded View.

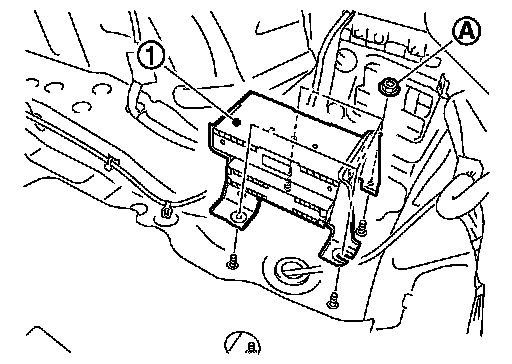

2.Remove nuts (A) from the trunk room RH, and remove TEL
adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION

Install in the reverse order of removal.
