CONSULT Function

DIAGNOSIS SYSTEM (BCM)

THEFT ALM : CONSULT Function (BCM - THEFT)

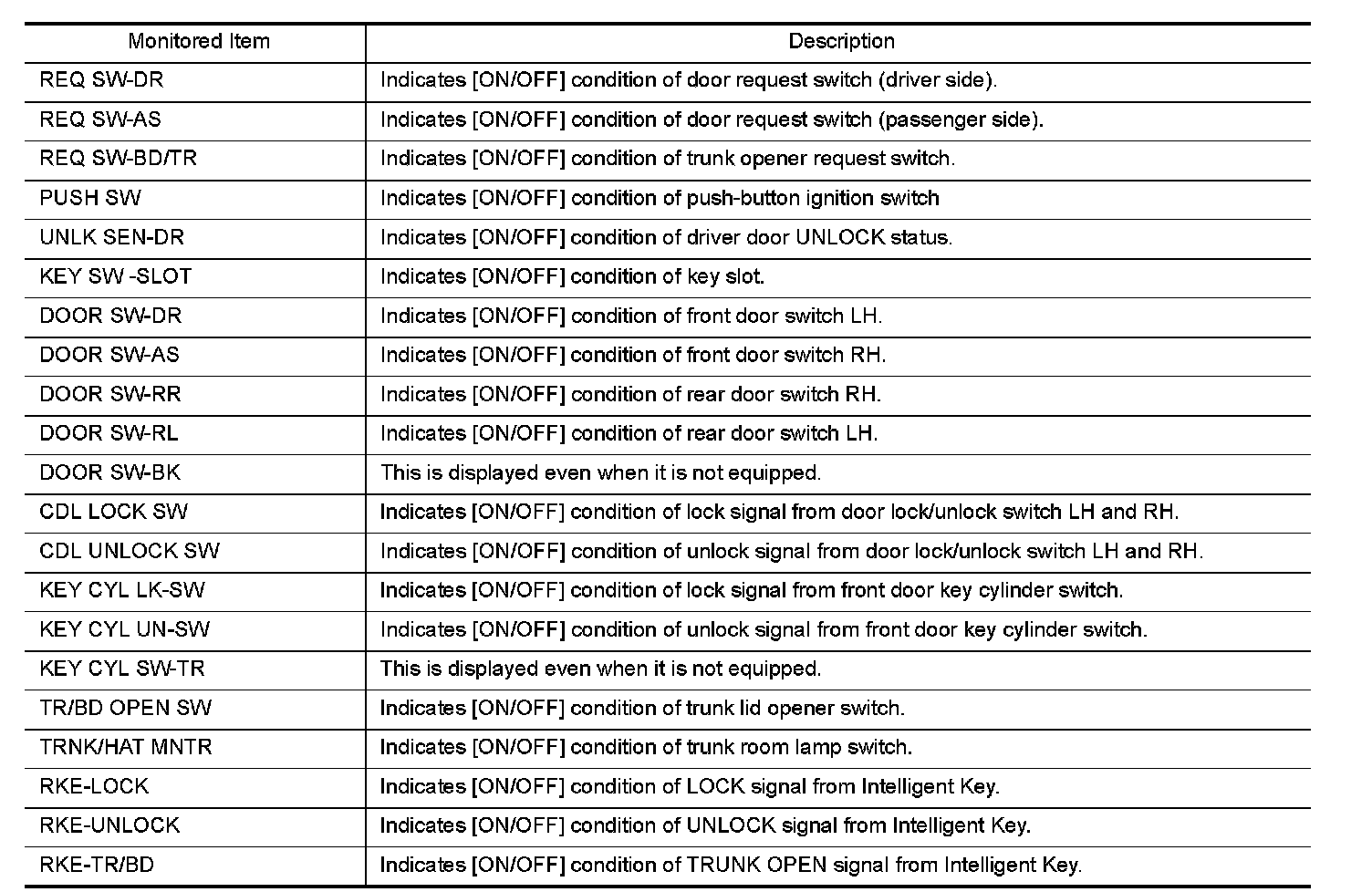

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

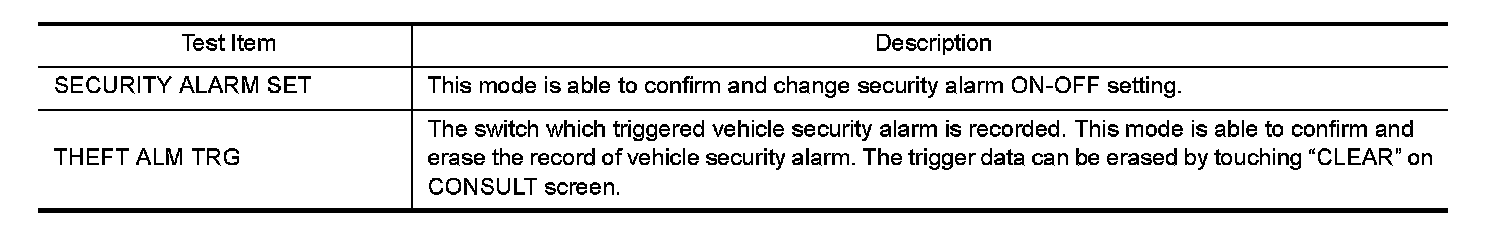

WORK SUPPORT

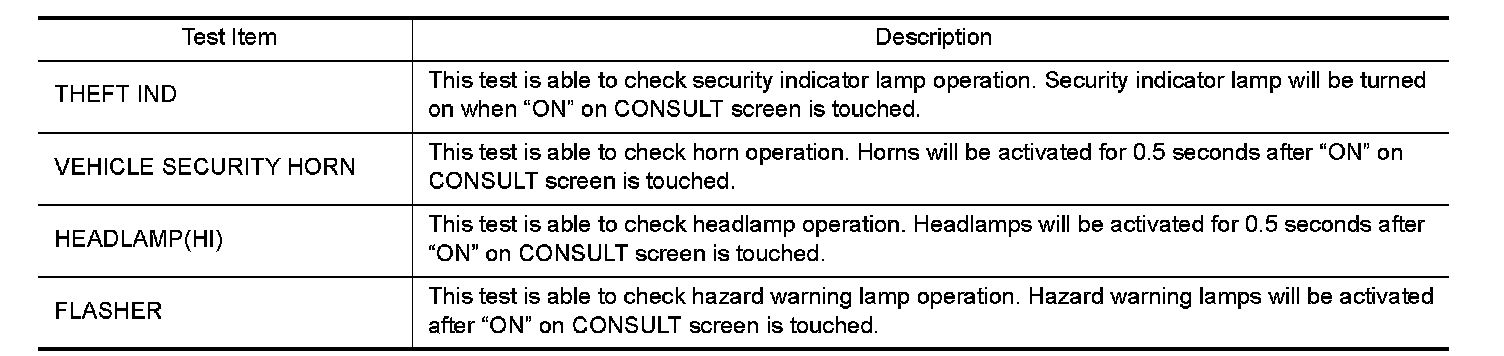

ACTIVE TEST
