Headlamp Function

HEADLAMP FUNCTION

Description

Headlamp lighting when vehicle security system is alarm phase.


Component Function Check


1. CHECK FUNCTION

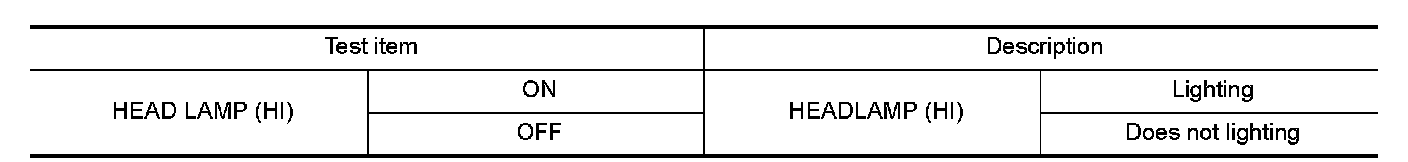

1.Perform "HEAD LAMP(HI)" in the "ACTIVE TEST" mode using CONSULT.
2.Check headlamp operation.





Is the inspection result normal?
YES- INSPECTION END
NO- Refer to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK HEADLAMP OPERATION

Refer to "Component Function Check" .
Is the inspection result normal?
YES- GO TO 2.
NO- repair or replace the malfunctioning parts.

2. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END
