Intelligent Key System/Engine Start Function

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

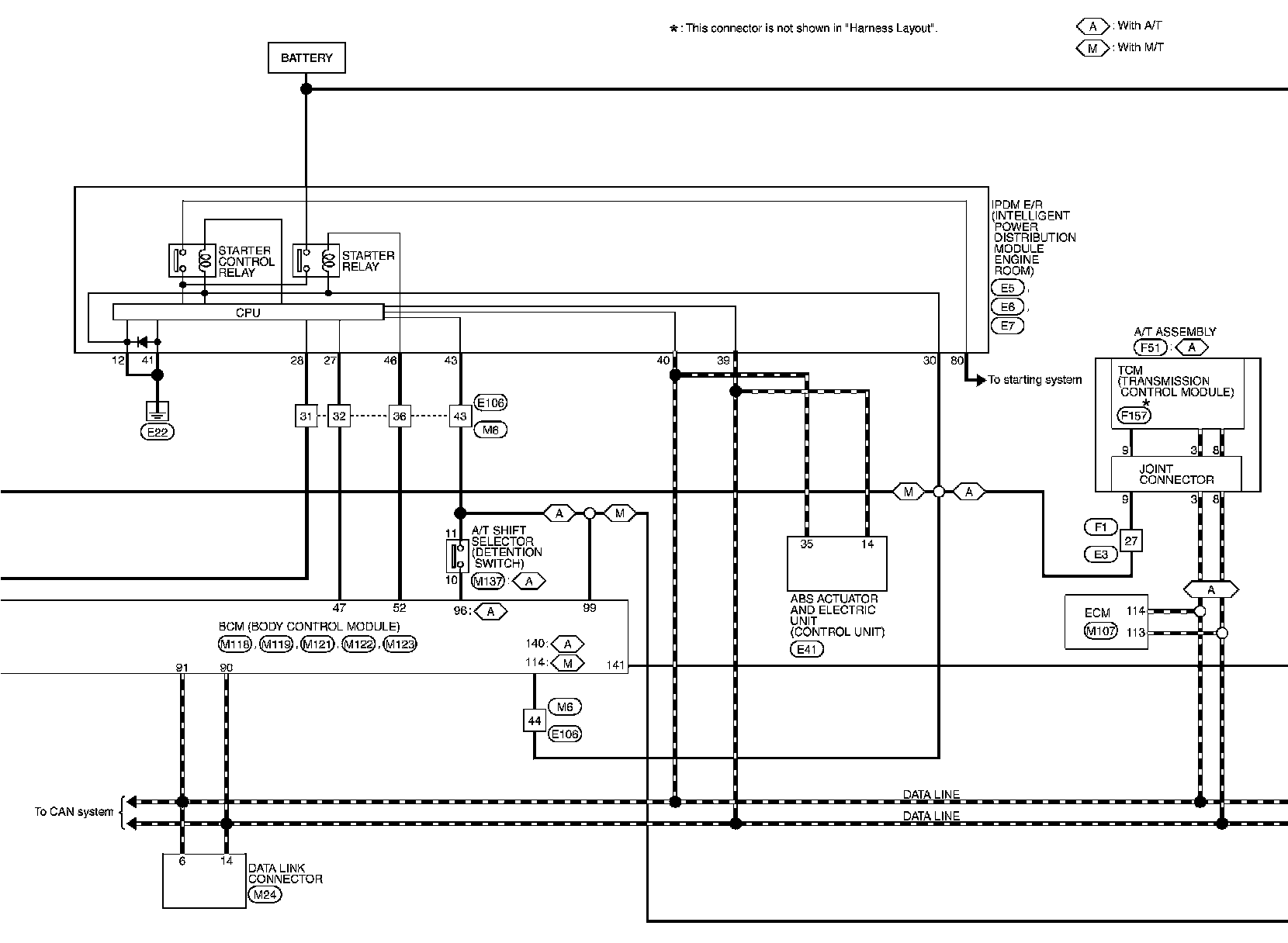

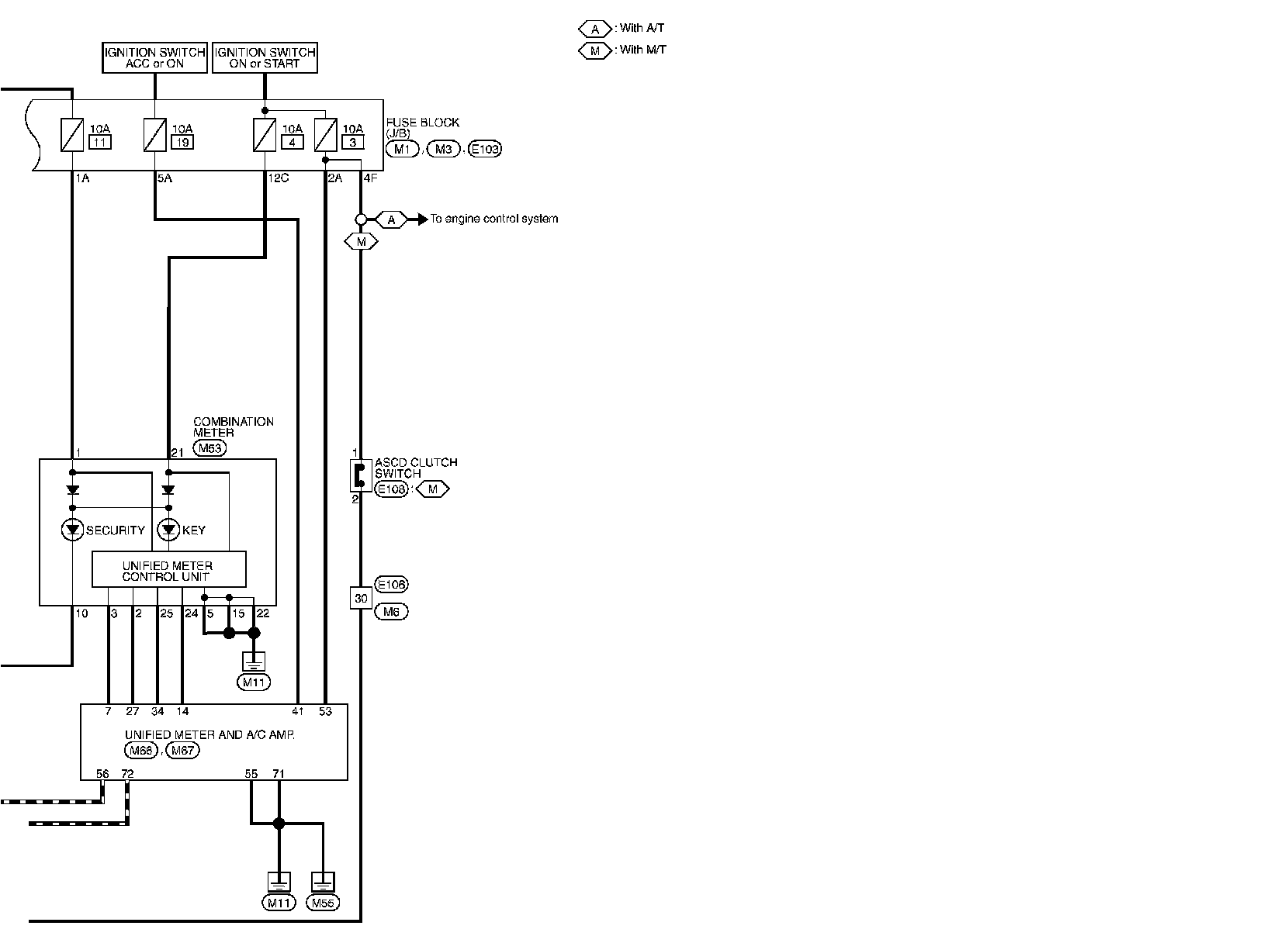

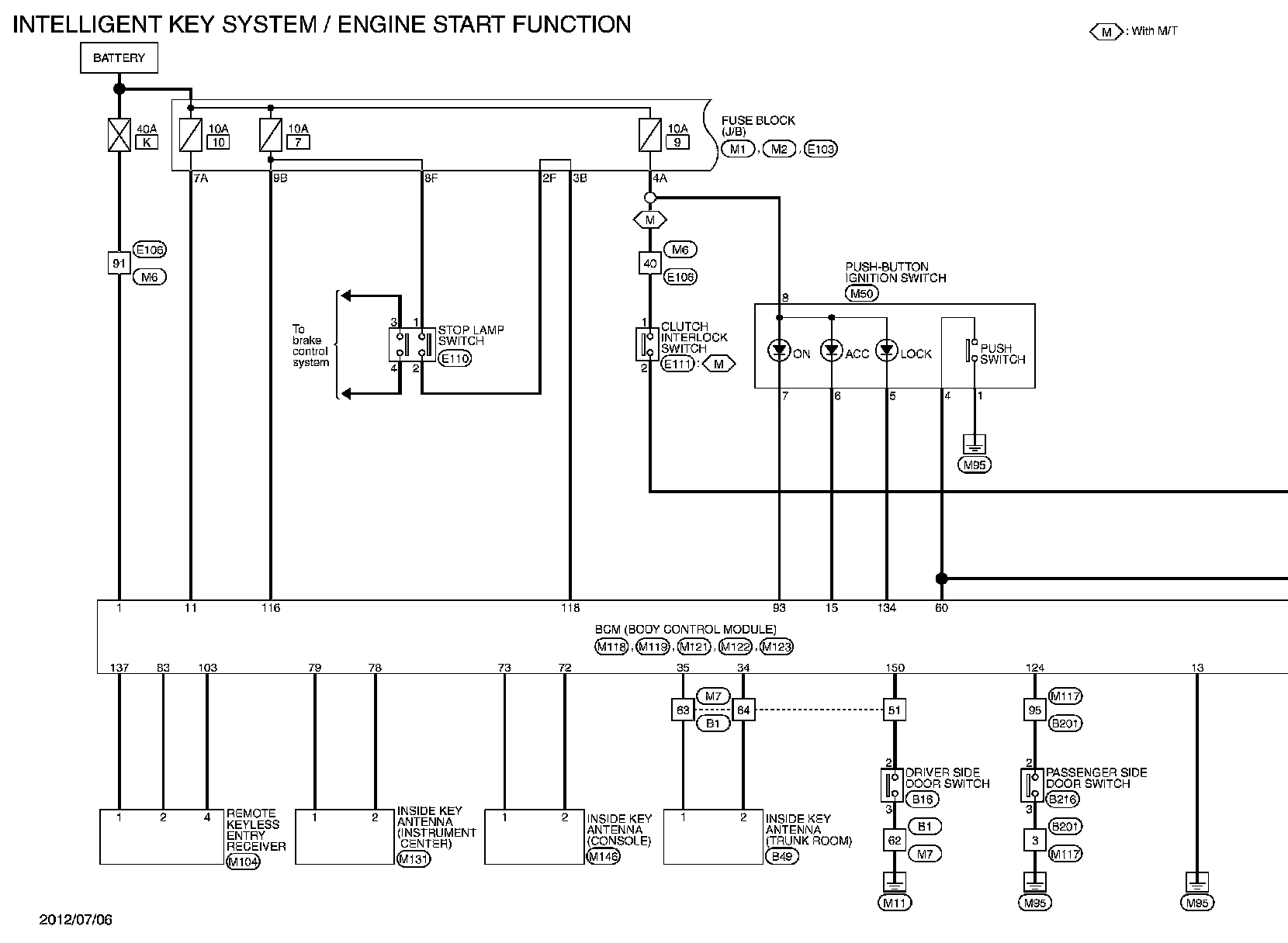

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
