With Navigation

U1900 CENTER SPEAKER

DTC Logic

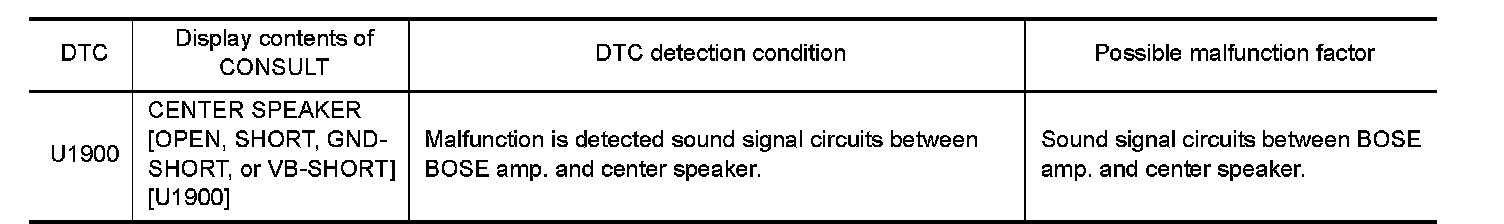

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM THE SELF-DIAGNOSIS

1.Delete the "self-diagnosis" results of "MULTI AV". Turn ignition switch OFF.
2.Turn ignition switch ON. perform the self-diagnosis again.
3.Check that the DTC is detected again.
Is any DTC detected?
YES- Check harnesses between BOSE amp. and center speaker.
NO- Refer to GI section. Refer to "Intermittent Incident" Intermittent Incident
