U1206

U1206 AV CONTROL UNIT

Description

An intermittent error caused by strong radio interference may be detected unless any symptoms (GPS reception error, etc.) occur. Replace the AV control unit if the malfunction occurs constantly. Refer to "Exploded View" With Navigation.

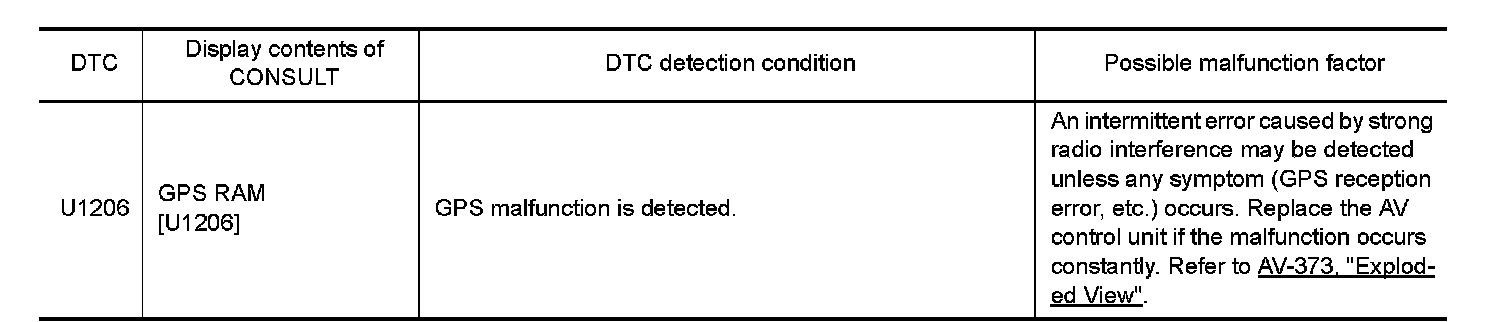

DTC Logic








Diagnosis Procedure


1. PERFORM THE SELF-DIAGNOSIS

1.Delete the "Self-Diagnosis Results" of "MULTI AV". Turn ignition switch OFF.
2.Turn ignition switch ON. Perform the self-diagnosis again.
3.Check that the DTC is detected again.
Is any DTC detected?
YES- Replace AV control unit. Refer to "Exploded View" With Navigation.
NO- An intermittent error caused by strong radio interference may be detected unless any symptom (GPS reception error, etc.) occurs.
