Restraint System

DTC Logic

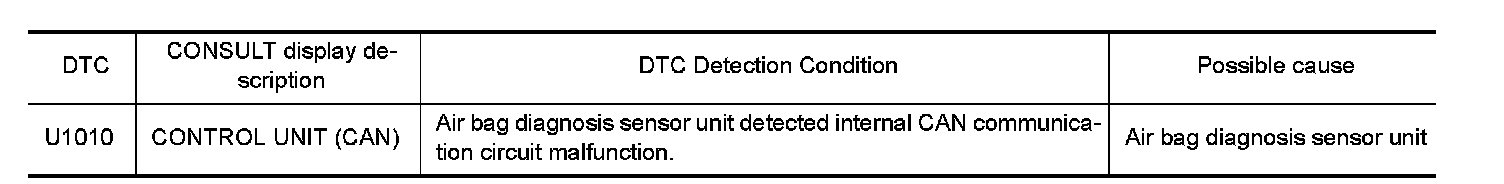

DTC DETECTION LOGIC








Diagnosis Procedure


1. REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

When DTC "U1010" is detected, replace Air bag diagnosis sensor unit.
- Replace Air bag diagnosis sensor unit. Refer to "Exploded View" Exploded View.
