U1001

U1001 CAN COMM CIRCUIT

Description

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.


DTC Logic

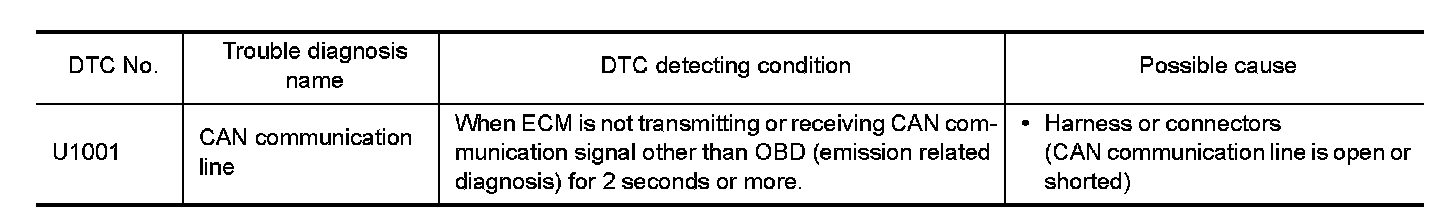

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 3 seconds.
2.Check DTC.
Is DTC detected?
YES-"Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure

Go to "Trouble Diagnosis Flow Chart" Trouble Diagnosis Flow Chart.
