Roof Control

Description

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Modern vehicle is equipped with many electronic control unit, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less wiring. Each control unit transmits/receives data but selectively reads required data only.


DTC Logic

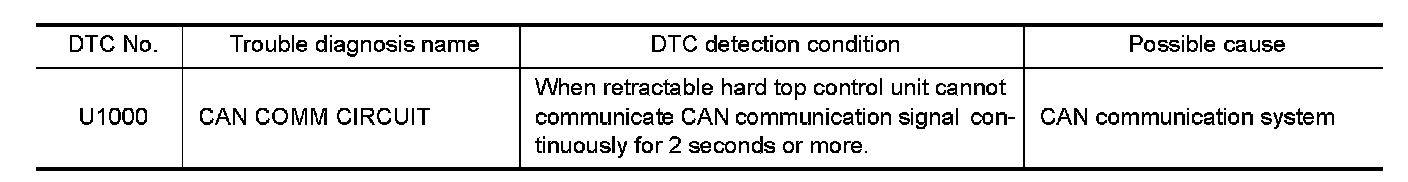

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, refer to "DTC Inspection Priority Chart" Related Tests, Information and Procedures, and determine trouble diagnosis order.







Diagnosis Procedure


1. PERFORM SELF DIAGNOSTIC

1.Turn ignition switch ON and wait for 2 seconds or more.
2.Check "Self Diagnostic Results" mode of "RETRACTABLE HARD TOP" using CONSULT.
Is the DTC displayed?
YES- Refer to "Trouble Diagnosis Flow Chart" Trouble Diagnosis Flow Chart.
NO- Refer to "Intermittent Incident" Intermittent Incident.
