Vehicle Speed Signal

Description

U0415 is displayed if any unusual condition is present in the reception status of the vehicle speed signal from the ABS actuator and electric unit (control unit).


DTC Logic

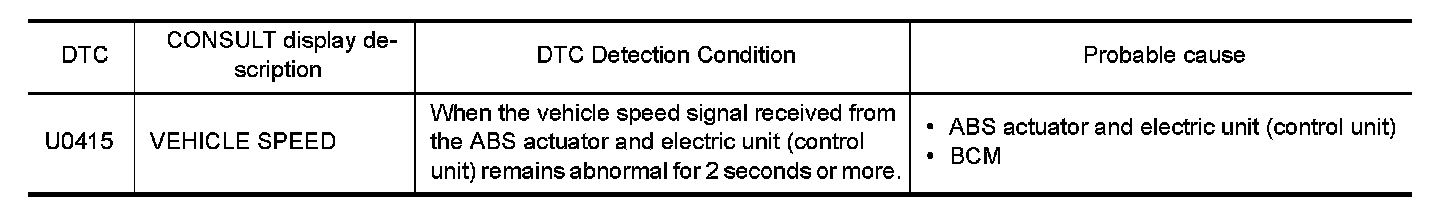

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC CONFIRMATION

1.Erase the DTC.
2.Turn ignition switch OFF.
3.Perform the "Self Diagnostic Result" of CONSULT, when passed 2 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES- Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAG RESULTS

Perform "Self-Diagnostic Result" of ABS actuator and electric unit (control unit) with CONSULT. Refer to BRC27, "CONSULT Function".
Is any DTC detected?
YES- Repair or replace the malfunctioning part.
NO- Replace BCM. Refer to "Removal and Installation" Removal and Installation.
