U0300

U0300 CAN COMMUNICATION DATA

Description

The amount of data transmitted from each control unit is read.


DTC Logic

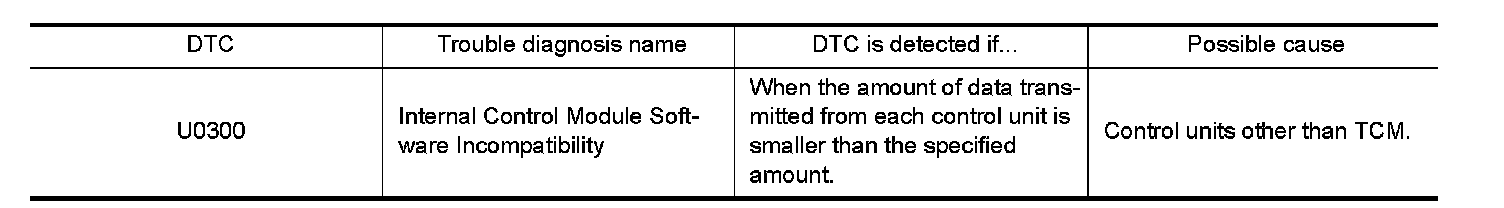

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Turn ignition switch ON and wait 2 seconds or more.
2.Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "U0300" detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK CONTROL UNIT

Check the number of control units replaced before detecting "U0300".
Is the number of replaced control units one?
YES- Since the replaced control unit may be out of specifications, check the part number and specifications.
NO- GO TO 2.

2. INSPECTION CONTROL UNIT

With CONSULT
1.Remove one of the replaced control units.
2.Install the previous control unit mounted before replacement.
3.Turn ignition switch ON and wait 2 seconds or more.
4.Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "U0300" detected?
YES- Turn OFF the ignition switch to check the other control units in the same method.
NO- Since the removed control unit may be out of specifications, check the part number and specifications.
