P1705

P1705 TP SENSOR

Description

- The accelerator pedal position sensor is installed on the upper end of the accelerator pedal assembly.
- The accelerator pedal position sensor detects the accelerator position.
- The accelerator pedal position sensor transform the accelerator pedal position into output voltage, and emit the voltage signal to the ECM.
- The TCM receives accelerator pedal position signal from the ECM via CAN communication.


DTC Logic

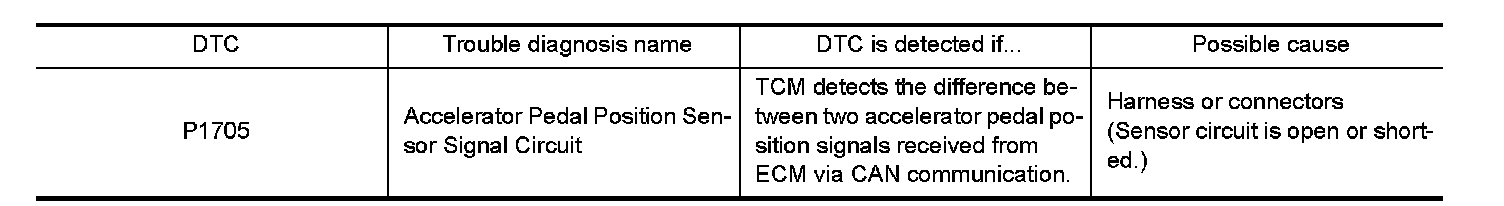

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Start the engine.
2.Select "SLCT LVR POSI" and "VHCL/S SE-A/T" in "Data Monitor" in "TRANSMISSION".
3.Drive vehicle and maintain the following conditions for 5 seconds or more.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "P1705" detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC OF ECM

With CONSULT
1.Turn ignition switch ON.
2.Perform "Self Diagnostic Results" in "ENGINE".
Is any DTC detected?
YES- Check DTC detected item. Refer to "DTC Index" Testing and Inspection.
NO- GO TO 2.

2. CHECK DTC OF TCM

With CONSULT
Perform "Self Diagnostic Results" in "TRANSMISSION".
Is any DTC other than "P1705" detected?
YES- Check DTC detected item. Refer to "DTC Index" Testing and Inspection.
NO- GO TO 3.

3. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
Is the inspection result normal?
YES- Replace control valve & TCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace damaged parts.
