P1612

Description

BCM performs ID verification with ECM that allows the engine to start. Start the engine if the ID is successfully verified. ECM prevents the engine from starting if the ID is not registered. BCM starts the communication with
ECM if ignition switch is turned ON.


DTC Logic

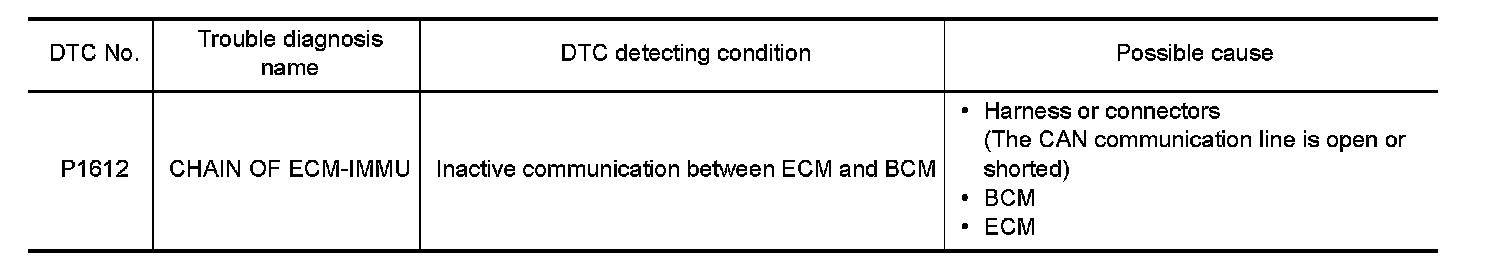

DTC DETECTION LOGIC

NOTE:
- If DTC P1612 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
"DTC Logic" Body Control System.
- If DTC P1612 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
"DTC Logic" Body Control System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON under the following conditions.
-Selector lever is in the P or N position
-Do not depress brake pedal
-Do not depress clutch pedal
2.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE BCM

1.Replace BCM. Refer to "Removal and Installation" Removal and Installation.
2.Perform initialization using CONSULT.
Does the engine start?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE ECM

Replace ECM. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (ECM) : Special Repair Requirement" Special Repair Requirement.
- INSPECTION END
