ICC Steering Switch

P1564 ICC STEERING SWITCH

Description

ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.
Refer to "System Description" System Description for the ICC function.


DTC Logic

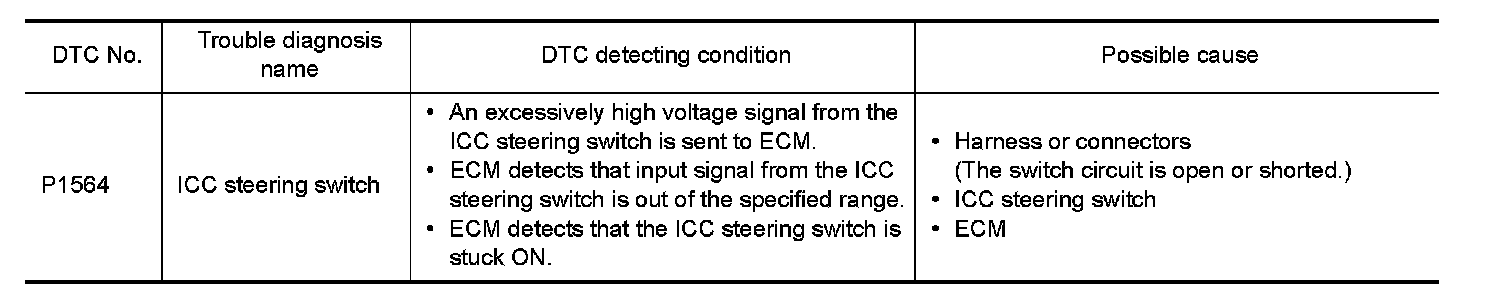

DTC DETECTION LOGIC

NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
"DTC Logic" P0605.






DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 10 seconds.
2.Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
3.Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
4.Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 seconds.
5.Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
6.Press DISTANCE switch for at least 10 seconds, then release it and wait at least 10 seconds.
7.Check DTC.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK GROUND CONNECTION

1.Turn ignition switch OFF.
2.Check ground connection M95. Refer to Ground Inspection in "Circuit Inspection" Circuit Inspection.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace ground connection.

2. CHECK ICC STEERING SWITCH CIRCUIT

With CONSULT
1.Turn ignition switch ON.
2.Select "MAIN SW", "CANCEL SW", "RESUME/ACC SW", "SET SW" and "DIST SW" in "DATA MONITOR"
mode with CONSULT.

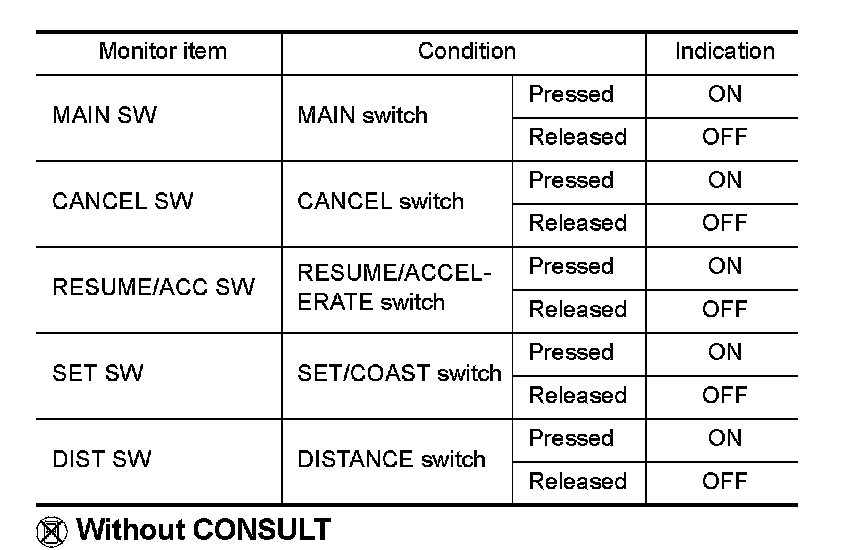

3.Check each item indication under the following conditions.





Without CONSULT
1.Turn ignition switch ON.

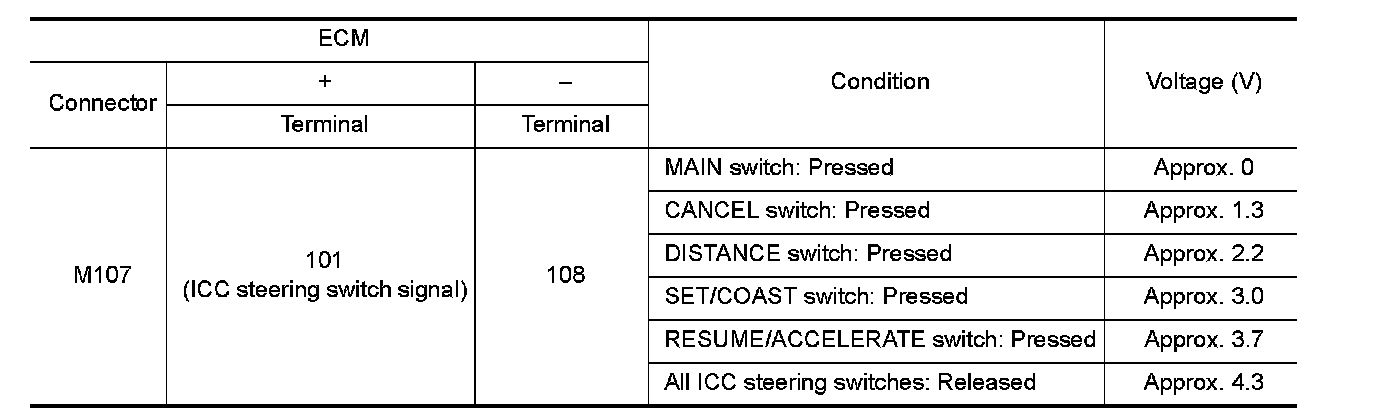

2.Check the voltage between ECM harness connector terminals as per the following.





Is the inspection result normal?
YES- GO TO 8.
NO- GO TO 3.

3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.
3.Disconnect combination switch harness connector M303.

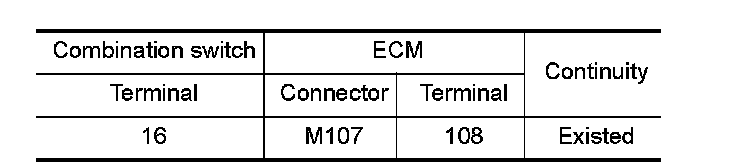

4.Check the continuity between combination switch and ECM harness connector.





5.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. DETECT MALFUNCTIONING PART

Check the following.
- Combination switch (spiral cable)
- Harness for open and short between ECM and combination switch
- Repair open circuit, short to ground or short to power in harness or connectors.

5. CHECK ICC STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

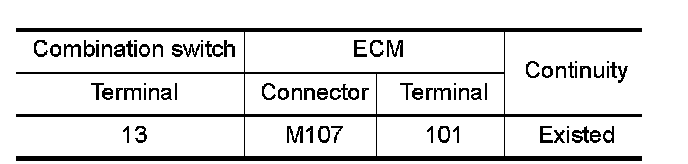

1.Check the continuity between combination switch and ECM harness connector.





2.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 7.
NO- GO TO 6.

6. DETECT MALFUNCTIONING PART

Check the following.
- Combination switch (spiral cable)
- Harness for open and short between ECM and combination switch
- Repair open circuit, short to ground or short to power in harness or connectors.

7. CHECK ICC STEERING SWITCH

Refer to "Component Inspection" .
Is the inspection result normal?
YES- GO TO 8.
NO- Replace ICC steering switch. Refer to "Exploded View" Service and Repair.

8. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END


Component Inspection


1. CHECK ICC STEERING SWITCH

1.Turn ignition switch OFF.
2.Disconnect combination switch (spiral cable) harness connector M303.

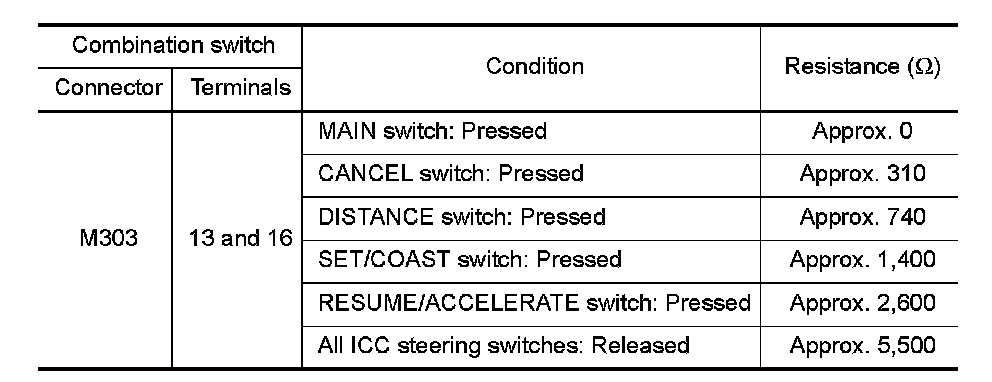

3.Check resistance between combination switch harness connector terminals under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace ICC steering switch. Refer to "Exploded View" Service and Repair.
