P0795

P0795 PRESSURE CONTROL SOLENOID C

Description

- The front brake solenoid valve is controlled by the TCM in response to signals transmitted from the transmission range switch, output speed sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
- The front brake solenoid valve controls the front brake control valve in response to a signal transmitted from the TCM.


DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


CAUTION:
Always drive vehicle at a safe speed.

1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Start the engine.
2.Select "BATTERY VOLT", "MANU MODE SW", "GEAR" and "VHCL/S SE-A/T" in "Data Monitor" in
"TRANSMISSION".

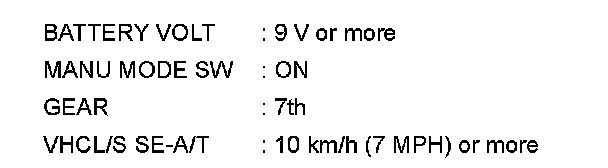

3.Drive vehicle and maintain the following conditions for 5 seconds or more.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT".
Is "P0795" detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
Is the inspection result normal?
YES- Replace control valve & TCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace damaged parts.
