P0717

P0717 INPUT SPEED SENSOR A

Description

The input speed sensor detects input shaft rpm (revolutions per minute). It is located on the input side of the A/
T. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.


DTC Logic

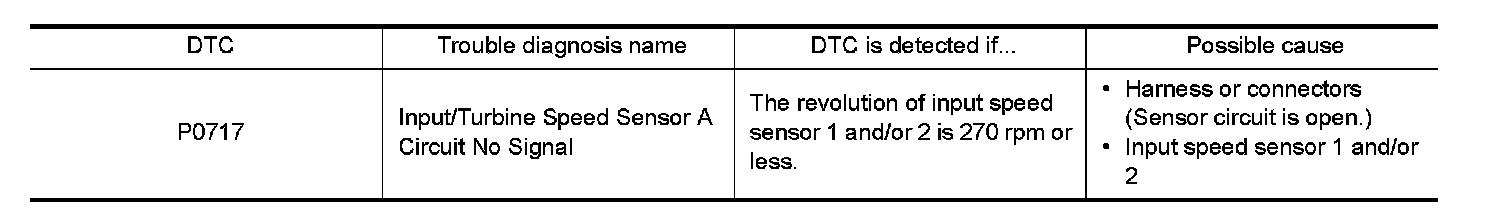

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


CAUTION:
Always drive vehicle at a safe speed.

1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Start the engine.
2.Select "SLCT LVR POSI", "GEAR", "VHCL/S SE-A/T", "W/O THL POS" and "ENGINE SPEED" in "Data
Monitor" in "TRANSMISSION".

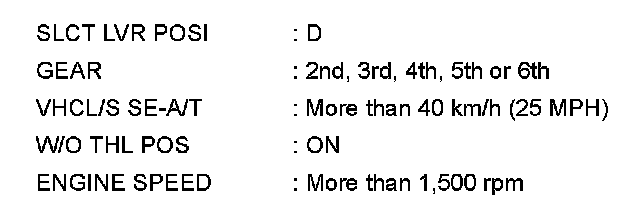

3.Drive vehicle and maintain the following conditions for 5 seconds or more.

CAUTION:
Keep the same gear position.
NOTE:
Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT".
Is "P0717" detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
Is the inspection result normal?
YES- Replace control valve & TCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace damaged parts.
