P050E

P050A, P050E COLD START CONTROL

Description

ECM controls ignition timing and engine idle speed when engine is started with pre-warming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.


DTC Logic

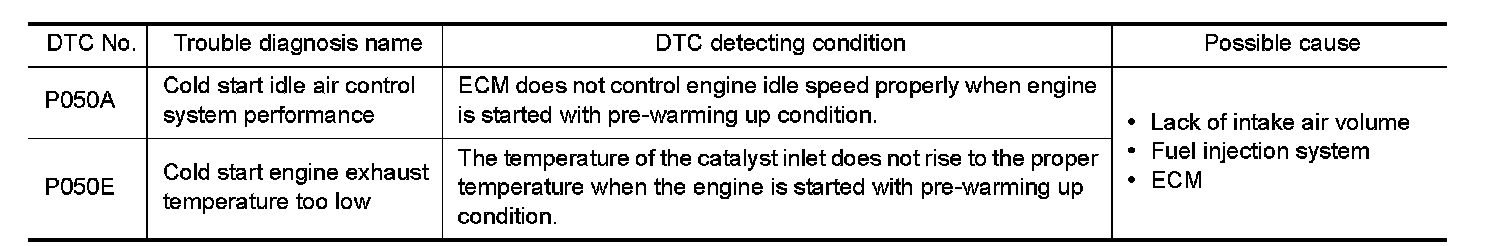

DTC DETECTION LOGIC

NOTE:
If DTC P050A or P050E is displayed with other DTC, first perform the trouble diagnosis for other DTC.






DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Select "DATA MONITOR" mode with CONSULT.
4.Check the indication of "COOLAN TEMP/S".
With GST
Follow the procedure "With CONSULT" above.
Is the value of "COOLAN TEMP/S" between 4�C (39�F) and 36�C (97�F)?
YES- GO TO 3.
NO-1 [If it is below 15�C (59�F)]-Warm up the engine until the value of "COOLAN TEMP/S" reaches 15�C
(59�F) or more. Retry from step 1.
NO-2 [If it is above 36�C (97�F)]-Cool engine down to less than 36�C (97�F). Retry from step 1.

3. PERFORM DTC CONFIRMATION PROCEDURE-II

With CONSULT
1.Set the select lever in N range.
2.Start the engine and warm up in idle with the value of "COOLAN TEMP/S" between 10�C (14�F) and
40�C (104�F) for more than 15 seconds.
3.Check 1st trip DTC.
With GST
Follow the procedure "With CONSULT" above.
Is 1st trip DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM IDLE AIR VOLUME LEARNING

Perform "IDLE AIR VOLUME LEARNING : Special Repair Requirement" Special Repair Requirement.
Is Idle Air Volume Learning carried out successfully?
YES- GO TO 2.
NO- Follow the instruction of Idle Air Volume Learning.

2. CHECK INTAKE SYSTEM

Check for the cause of intake air volume lacking. Refer to the following.
- Crushed intake air passage
- Intake air passage clogging
- Clogging of throttle body
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace malfunctioning part

3. CHECK FUEL INJECTION SYSTEM FUNCTION

Perform DTC Confirmation Procedure for DTC P0171, P0174. Refer to "DTC Logic" P0171.
Is the inspection result normal?
YES- GO TO 4.
NO- Go to "Diagnosis Procedure" P0171 for DTC P0171, P0174.

4. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Erase DTC.
3.Perform DTC Confirmation Procedure.
See "DTC Logic" .
Is the 1st trip DTC P050A or P050E displayed again?
YES- GO TO 5.
NO- INSPECTION END

5. REPLACE ECM

1.Replace ECM. Refer to "Component Parts Location" Engine Control System.
2.Go to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (ECM) : Special Repair
Requirement".
- INSPECTION END
