C1A14

C1A14 ECM

Description

- ECM transmits the accelerator pedal position signal, ICC brake switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ICC sensor integrated unit via CAN communication.
- ECM controls the electric throttle control actuator based on the engine torque demand received from the ICC sensor integrated unit via CAN communication.


DTC Logic

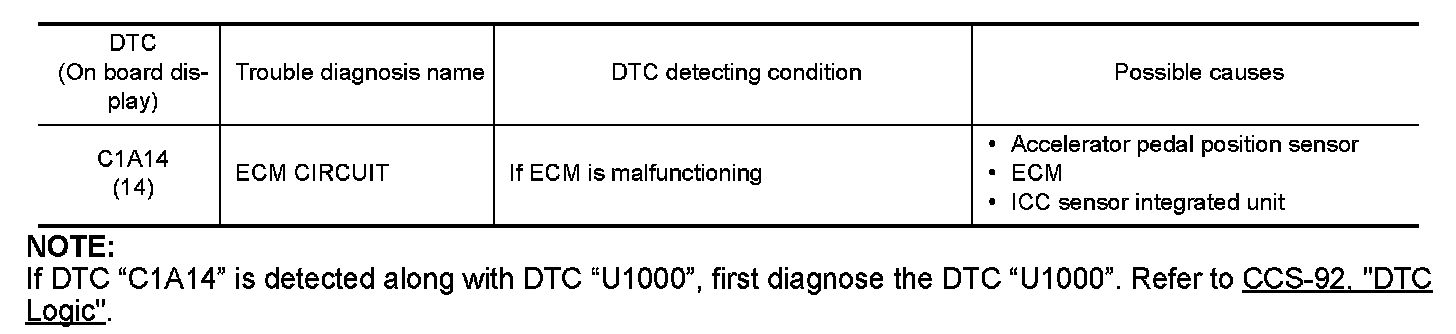

DTC DETECTION LOGIC






NOTE:
If DTC "C1A14" is detected along with DTC "U1000", first diagnose the DTC "U1000". Refer to "DTC Logic" Cruise Control.

1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Operate the ICC system and drive.

CAUTION:
Always drive safely.
3.Stop the vehicle.
4.Perform "All DTC Reading" with CONSULT.
5.Check if the "C1A14" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A14" detected as the current malfunction?
YES- Refer to "Diagnosis Procedure" .
NO- Refer to "Intermittent Incident" Intermittent Incident.


Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULTS

Check if "U1000" is detected other than "C1A14" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES- Perform the CAN communication system inspection. Repair or replace the malfunctioning parts.
Refer to "DTC Logic" Cruise Control.
NO- GO TO 2.

2. PERFORM SELF-DIAGNOSIS OF ECM

Check if any DTC is detected in "Self Diagnostic Result" of "ENGINE".
Is any DTC detected?
YES- Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to
"DTC Index" Testing and Inspection.
NO- Replace the ICC sensor integrated unit. Refer to "Exploded View" Exploded View.


Special Repair Requirement


DESCRIPTION

Perform the action test after adjusting the laser beam aiming of ICC sensor integrated unit when the following operation is performed.
- Removal and installation of ICC sensor integrated unit
- Replacement of ICC sensor integrated unit

SPECIAL REPAIR REQUIREMENT


1. LASER BEAM AIMING ADJUSTMENT OF ICC SENSOR INTEGRATED UNIT

Adjust the laser beam aiming of the ICC sensor integrated unit. Refer to "LASER BEAM AIMING ADJUSTMENT : Description" Description.
- GO TO 2.

2. CHECK ICC SYSTEM

1.Erase the "Self Diagnostic Result", and then perform "All DTC Reading" again after performing the action test. (Refer to "ACTION TEST : Description" Description for action test.)
2.Check that the ICC system is normal.
- WORK END
