C1149

C1147, C1148, C1149, C1150 USV/HSV LINE

Description


USV1, USV2 (CUT VALVE)

The cut valve shuts off the normal brake fluid path from the master cylinder, when VDC/TCS is activated.

HSV1, HSV2 (SUCTION VALVE)

The suction valve supplies the brake fluid from the master cylinder to the pump, when VDC/TCS is activated.


DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. DTC REPRODUCTION PROCEDURE

1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS" with CONSULT.
Is DTC "C1147", "C1148", "C1149" or "C1150" detected?
YES- Proceed to diagnosis procedure. Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK VDC SWITCH-OVER VALVE POWER SUPPLY

1.Turn the ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) harness connector.
3.Check the 30A fusible link (#L).

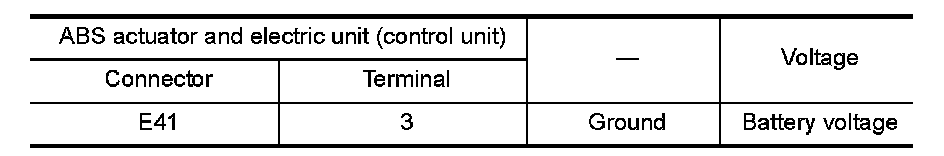

4.Check the voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Perform the trouble diagnosis for battery power supply circuit. Refer to "Wiring Diagram BATTERY POWER SUPPLY -" Battery Power Supply.

2. CHECK VDC SWITCH-OVER VALVE GROUND

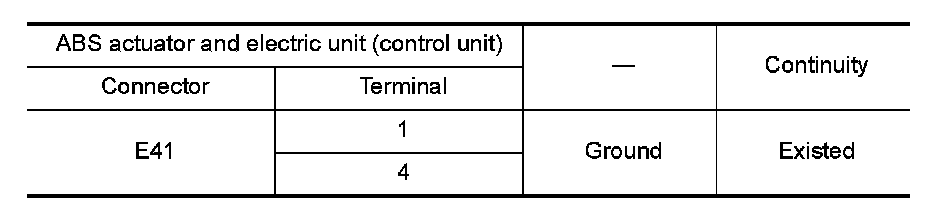

Check the continuity between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.

3. CHECK TERMINAL

Check the ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Refer to "Exploded View" Exploded View.
NO- Repair or replace error-detected parts.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Refer to BRC9, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"
- END
