C1144

C1144 INCOMPLETE STEERING ANGLE SENSOR ADJUSTMENT

DTC Logic

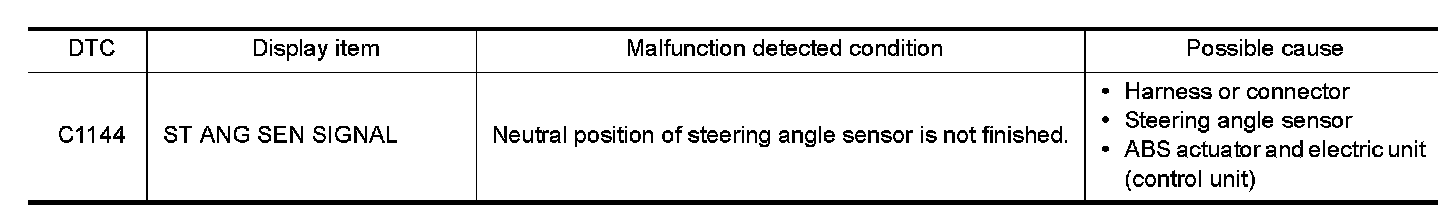

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. DTC REPRODUCTION PROCEDURE

1.Turn the ignition switch OFF to ON.
2.Select "ABS", "WORK SUPPORT" and "ST ANGLE SENSOR ADJUSTMENT" in order with CONSULT, and perform adjust the neutral position of steering angle sensor.
3.Perform self-diagnosis for "ABS" with CONSULT.
Is DTC "C1144" detected?
YES- Proceed to diagnosis procedure. Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK STEERING ANGLE SENSOR

Check the steering angle sensor. Refer to "Diagnosis Procedure" C1143.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit).
NO- Repair or replace error-detected parts.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Refer to BRC9, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"
- END
