B2707

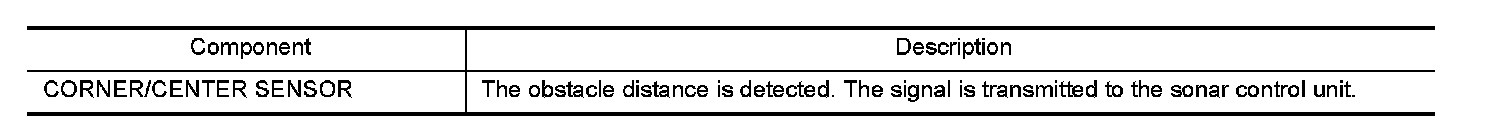

Description








DTC Logic

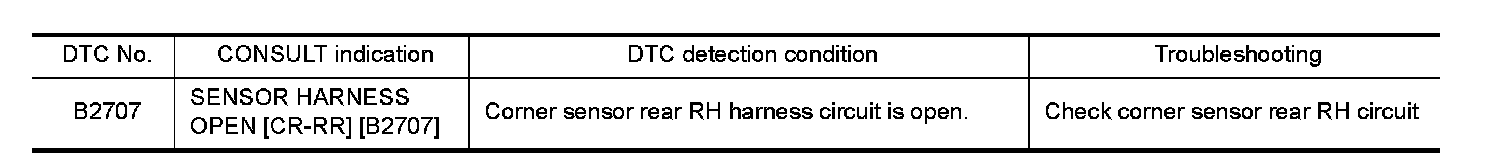

DTC DETECTION LOGIC








Diagnosis Procedure


1. CHECK HARNESS CORNER SENSOR REAR RH SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect sonar control unit connector and corner sensor rear RH connector.

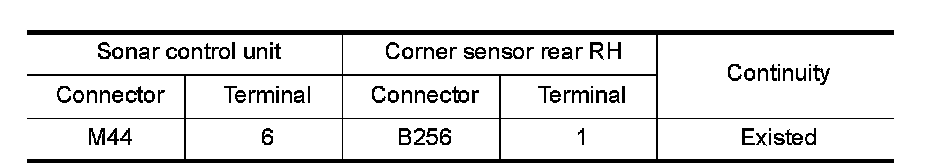

3.Check continuity between sonar control unit harness connector and corner sensor rear RH harness connector.

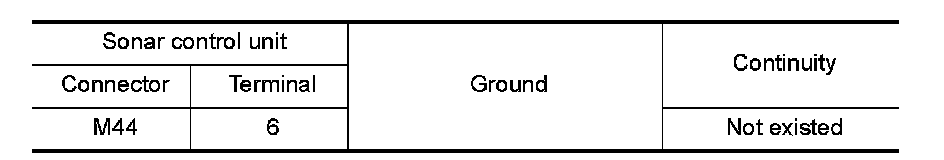

4.Check continuity between sonar control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair harness or connector.

2. CHECK HARNESS CORNER SENSOR REAR RH GROUND CIRCUIT

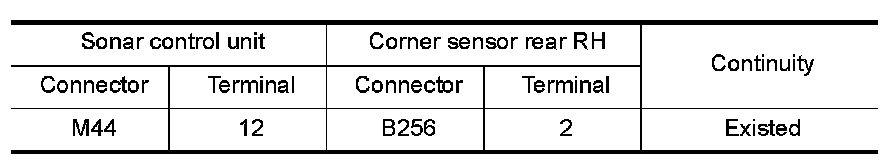

Check continuity between sonar control unit harness connector and corner sensor rear RH harness connector.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
