B2705

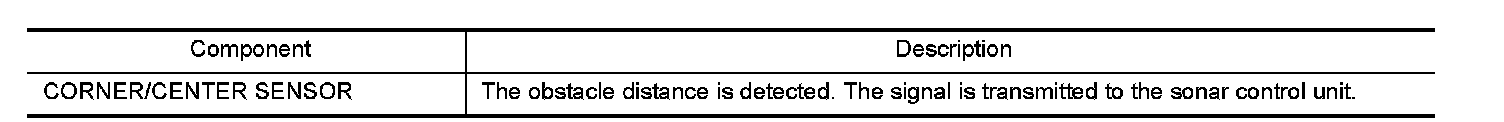

Description








DTC Logic

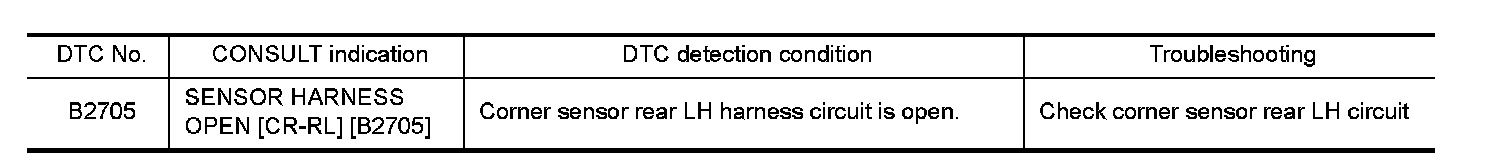

DTC DETECTION LOGIC








Diagnosis Procedure


1. CHECK HARNESS CORNER SENSOR REAR LH SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect sonar control unit connector and corner sensor rear LH connector.

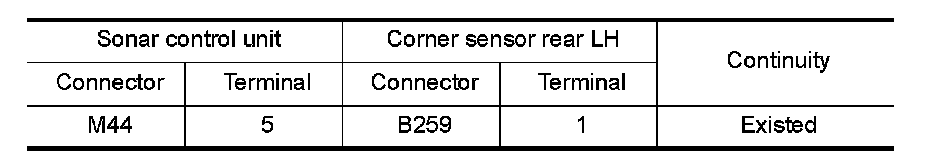

3.Check continuity between sonar control unit harness connector and corner sensor rear LH harness connector.

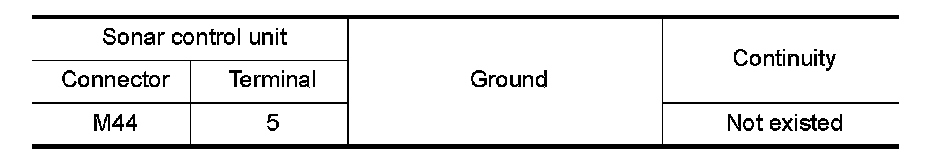

4.Check continuity between sonar control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair harness or connector.

2. CHECK HARNESS CORNER SENSOR REAR LH GROUND CIRCUIT

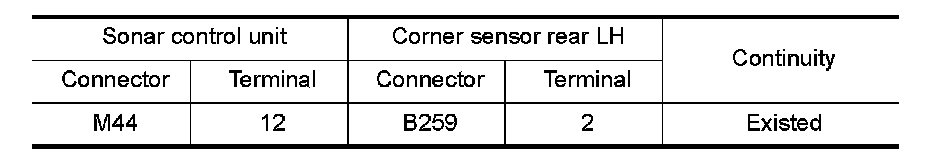

Check continuity between sonar control unit harness connector and corner sensor rear LH harness connector.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
