B26EA

Description

When the registered Intelligent Key is carried, the door lock/unlock operation and the push-button ignition switch operation become possible.


DTC Logic

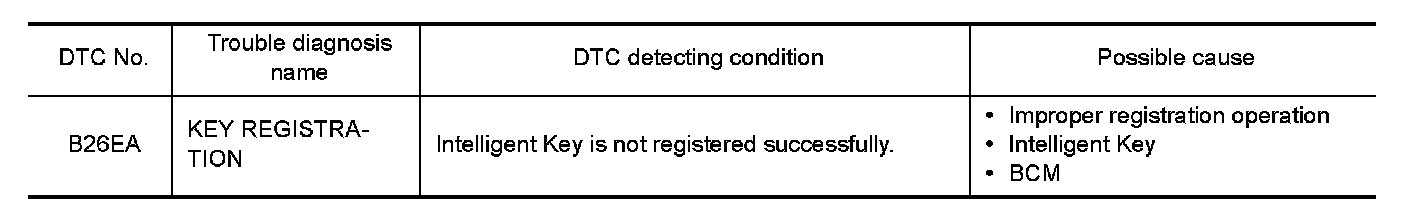

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Perform initialization using CONSULT. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key.
2.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure"
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

1.Perform initialization using CONSULT. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key.
2.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE INTELLIGENT KEY

1.Replace Intelligent Key. Reregister all Intelligent Keys
2.Perform initialization using CONSULT.
3.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- Replace BCM. Refer to "Removal and Installation" Removal and Installation.
NO- INSPECTION END
