B261A

B261A PUSH-BUTTON IGNITION SWITCH

Description

BCM transmits the change in the power supply position with the push-button ignition switch to IPDM E/R via
CAN communication line. IPDM E/R transmits the power supply position status via CAN communication line to
BCM.


DTC Logic

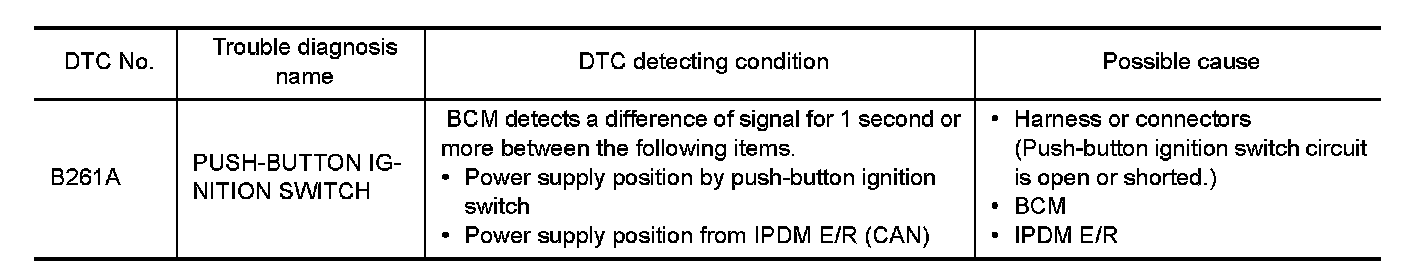

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press the push-button ignition switch under the following conditions, and wait for 1 second or more.
-Selector lever is in the P or N position
-Do not depress brake pedal
-Do not depress clutch pedal
2.Check "Self-diagnostic result" with CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK BCM OUTPUT

1.Turn ignition switch OFF.
2.Disconnect push-button ignition switch connector and IPDM E/R connector.

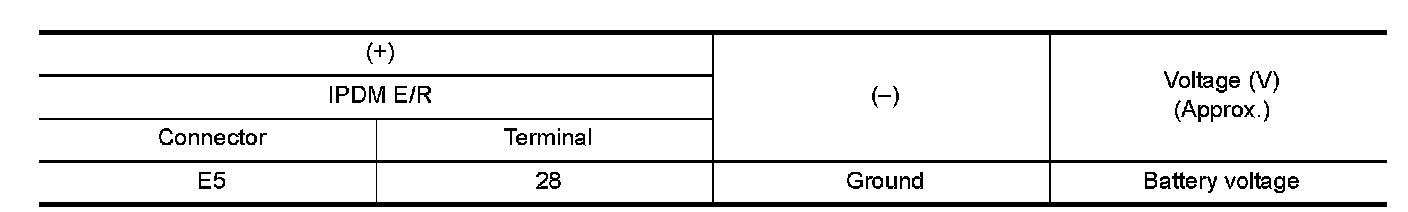

3.Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R. Refer to "Removal and Installation" Removal and Installation.
NO- GO TO 2.

2. CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT

1.Disconnect BCM connector.

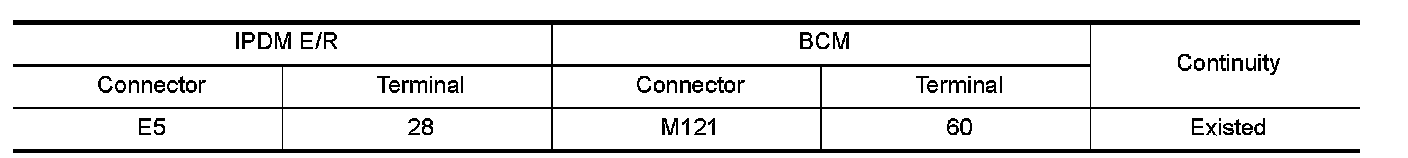

2.Check continuity between IPDM E/R harness connector and BCM harness connector.

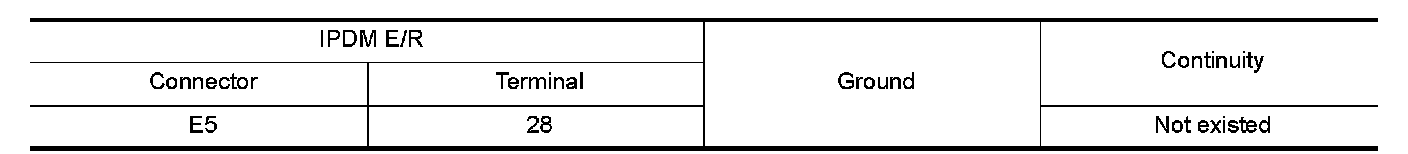

3.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace BCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace harness.
