Seat

Description

- The sliding motor is installed to the seat cushion frame.
- The sliding motor is activated via the driver seat control unit.
- Slides the seat forward/rearward by changing the rotation direction of sliding motor.


DTC Logic

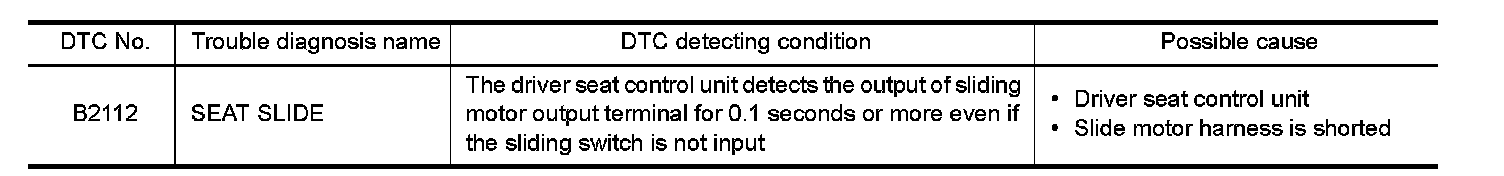

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. STEP 1

1.Turn ignition switch ON.
2.Check "Self diagnostic result" using CONSULT.
Is the DTC detected?
YES- Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check "Self diagnostic result" using CONSULT.
3.Erase the DTC.
4.Perform DTC confirmation procedure. Refer to "DTC Logic" .
Is the DTC displayed again?
YES- GO TO 2.
NO- GO TO 4.

2. CHECK SLIDING MOTOR CIRCUIT (POWER SHORT)

1.Turn ignition switch OFF.
2.Disconnect sliding motor connector and driver seat control unit connector.

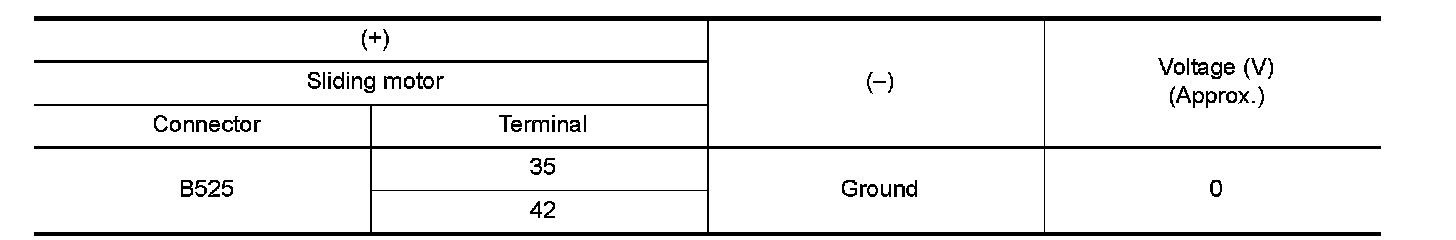

3.Check voltage between sliding motor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL

1.Connect driver seat control unit connector.

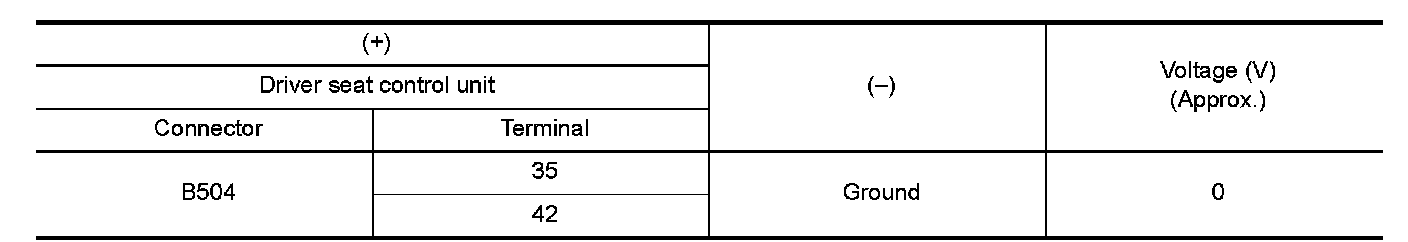

2.Check voltage between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Replace driver seat control unit. Refer to "Removal and Installation" Removal and Installation

4. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END
