B1755

Description

There are 4 states in flipper door. Open and close operations of retractable hard top system are performed interlocking with other retractable hard top components. For the detail,


FUNCTION : System Description".


DTC Logic

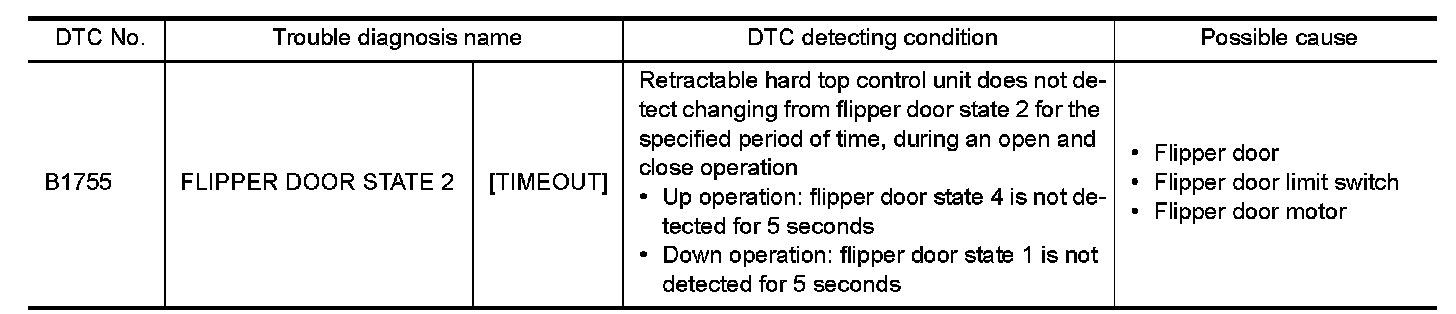

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, refer to "DTC Inspection Priority Chart" Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate retractable hard top to fully open and fully close.
3.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK RETRACTABLE HARD TOP SYSTEM COMPONENT PARTS

Check retractable hard top component parts as bellow deformation, looseness, rattle, interference with other parts, and pinched foreign materials.
- Flipper door: Refer to "Exploded View" Exploded View.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace malfunctioning part.

2. CHECK FLIPPER DOOR LIMIT SWITCH

Check flipper door limit switch. Refer to "Diagnosis Procedure" Flipper Door Limit Switch.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace malfunctioning part.

3. CHECK FLIPPER DOOR MOTOR

Check flipper door motor. Refer to "Diagnosis Procedure" Flipper Door Motor.
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Repair or replace malfunctioning part.
