B1712

DTC Logic

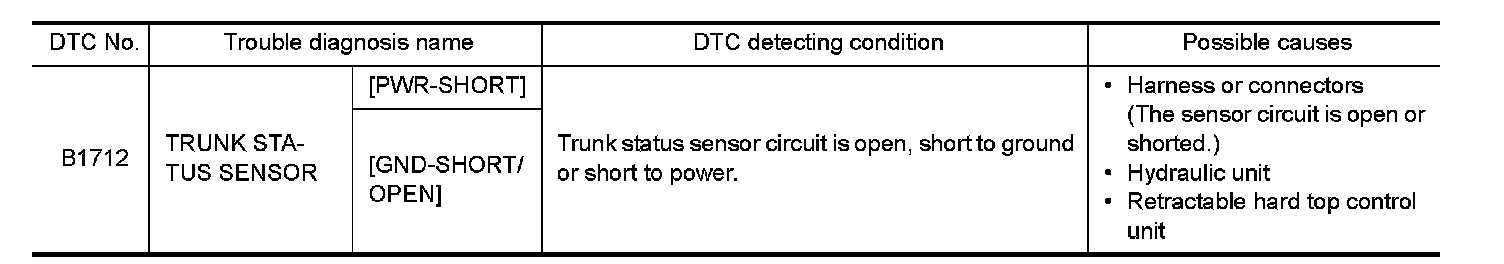

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, refer to "DTC Inspection Priority Chart" Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate retractable hard top to fully open and fully close.
3.Check DTC.
Is DTC detected?
YES- Go to "Diagnosis Procedure" B170C.
NO- INSPECTION END


Diagnosis Procedure


1. CHECK TRUNK STATUS SENSOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect hydraulic unit (trunk status sensor) harness connector.
3.Turn ignition switch ON.

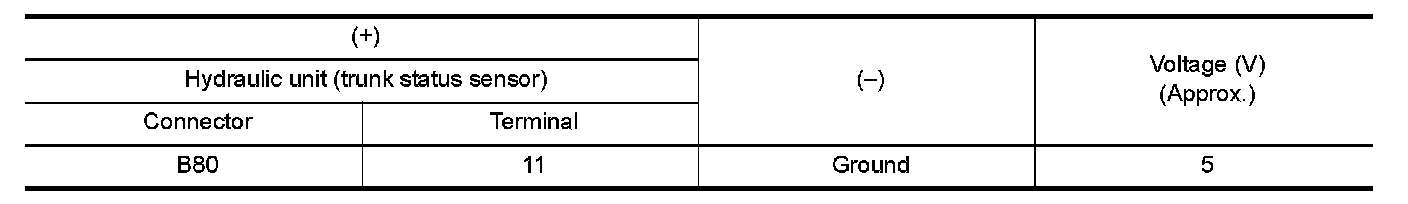

4.Check the voltage between hydraulic unit (trunk status sensor) harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. CHECK TRUNK STATUS SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.Turn ignition switch OFF.
2.Disconnect retractable hard top control unit harness connector.

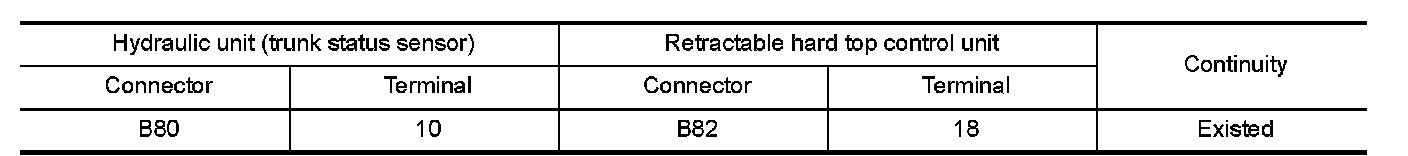

3.Check the continuity between hydraulic unit (trunk status sensor) harness connector and retractable hard top control unit harness connector.





4.Check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. REPLACE HYDRAULIC UNIT

Replace hydraulic unit. Refer to "Removal and Installation" Removal and Installation.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 4.

4. REPLACE RETRACTABLE HARD TOP CONTROL UNIT

Replace retractable hard top control unit. Refer to "Removal and Installation" Service and Repair.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 5.

5. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END
