B1702

DTC Logic

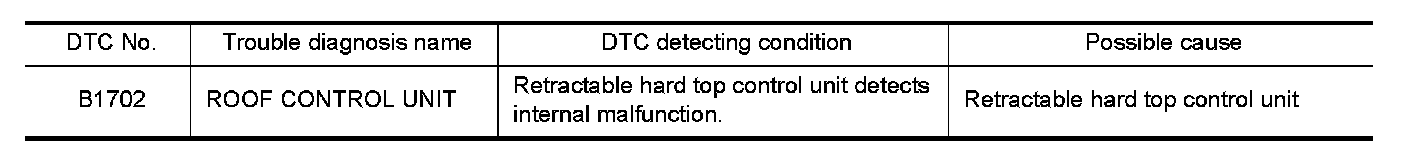

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, refer to "DTC Inspection Priority Chart" Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SELF DIAGNOSTIC RESULT

1.Turn ignition switch OFF.
2.Replace retractable hard top control unit. Refer to "Removal and Installation" Service and Repair.
3.Perform DTC Confirmation Procedure. Refer to "DTC Logic" .
- INSPECTION END
