CONSULT-III Function(BCM)




DIAGNOSIS SYSTEM (BCM)

WIPER : CONSULT Function (BCM - WIPER)

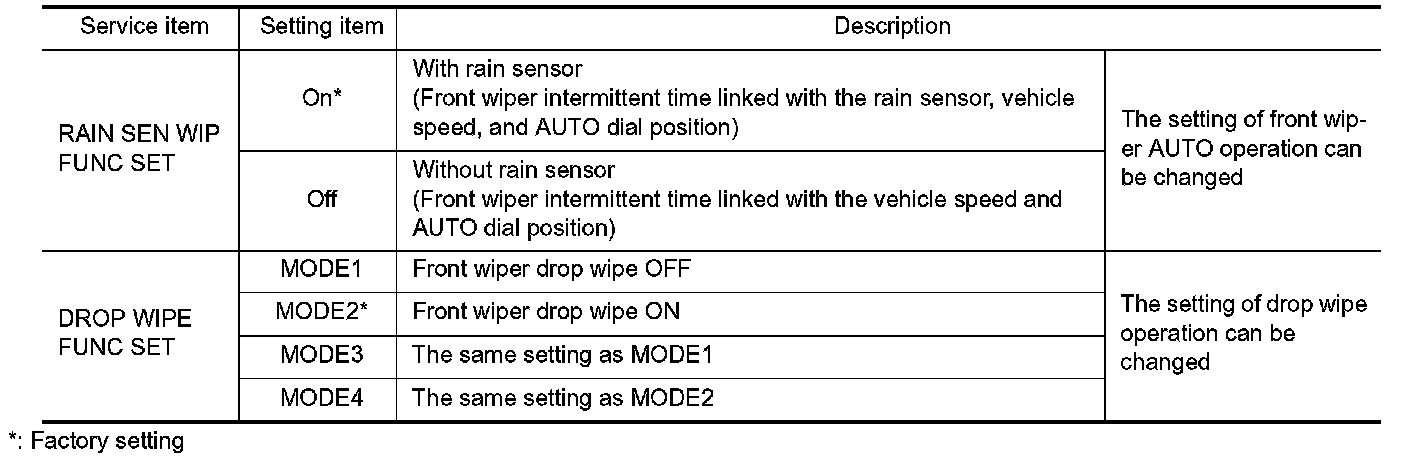

WORK SUPPORT

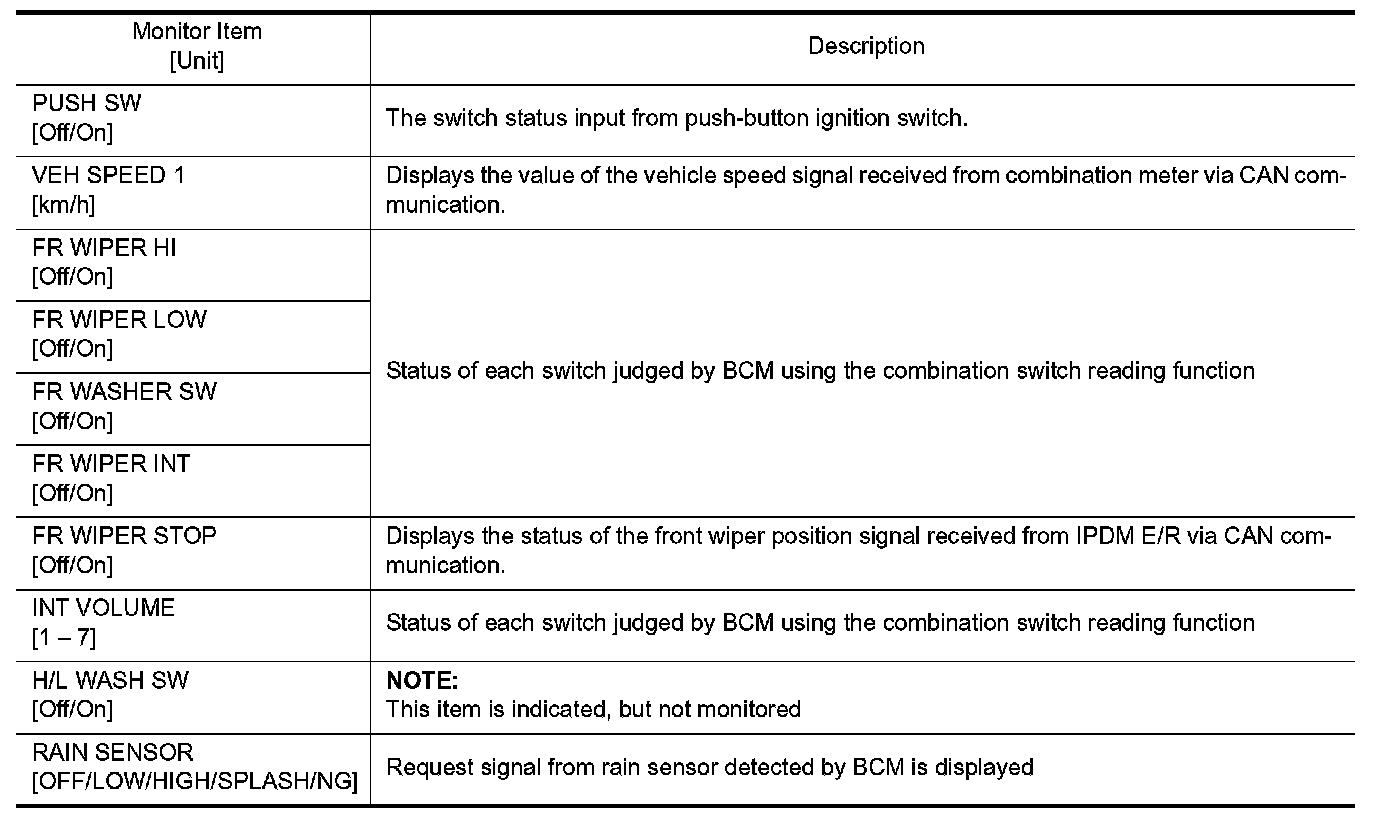

DATA MONITOR

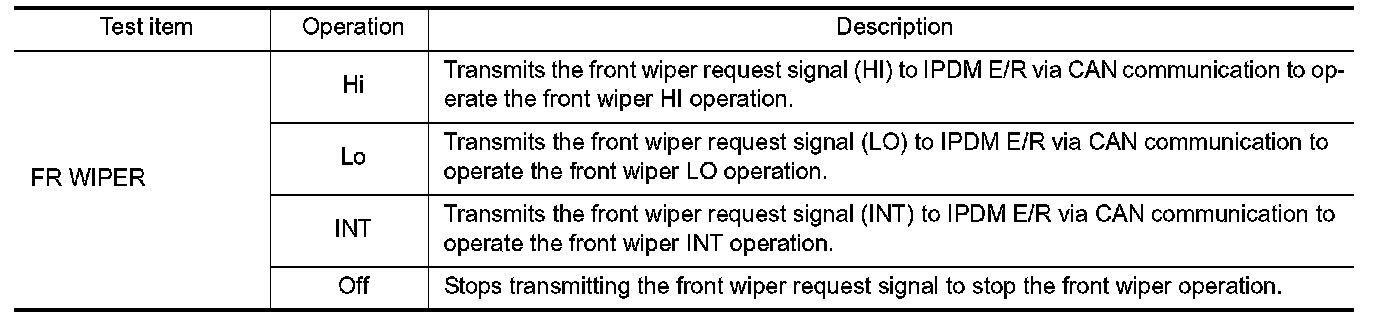

ACTIVE TEST
