Reference Value
>>
Rear Power Window Switch
Rear Power Window Switch
REAR
POWER WINDOW SWITCH
Reference Value

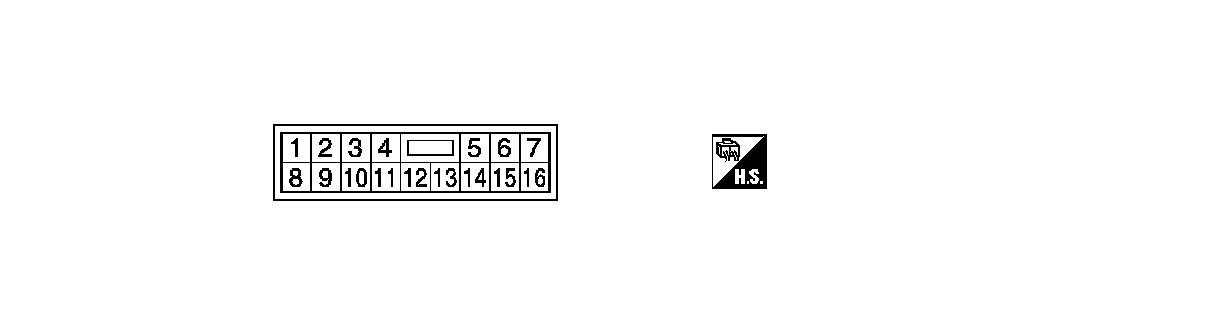

TERMINAL LAYOUT

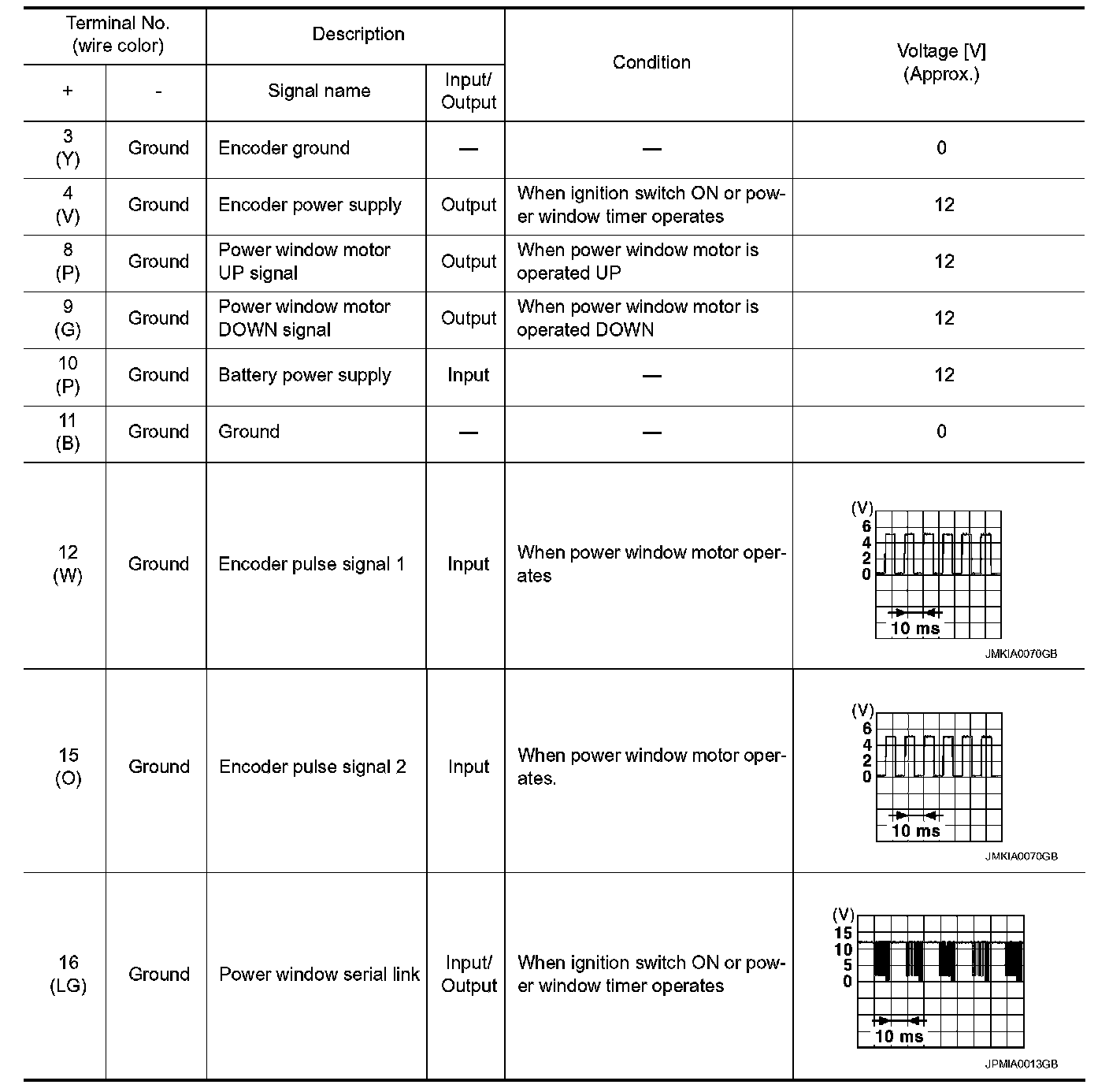

PHYSICAL VALUES
REAR
POWER WINDOW SWITCH
