Component Function Check

POWER WINDOW SERIAL LINK

REAR POWER WINDOW SWITCH RH : Component Function Check


1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

With CONSULT

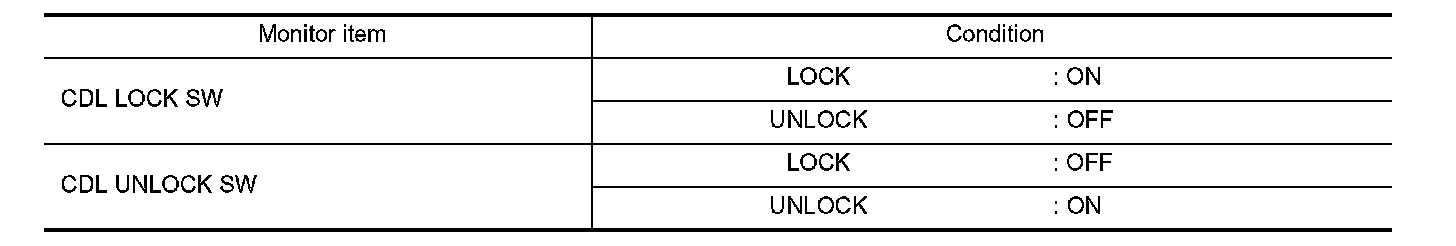

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT. Diagnosis Procedure.





Is the inspection result normal?
YES- Power window serial link is OK.
NO- Diagnosis Procedure.
