Component Function Check

POWER WINDOW SERIAL LINK

POWER WINDOW MAIN SWITCH : Component Function Check


1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

With CONSULT

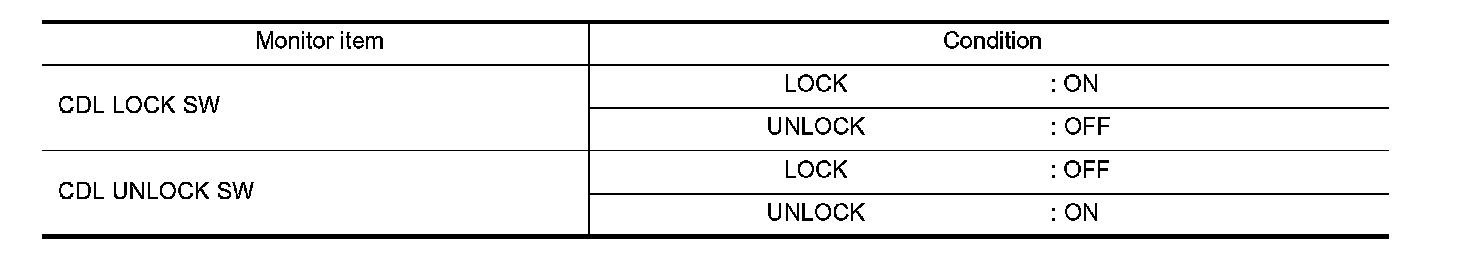

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT. CONSULT Function.





Is the inspection result normal?
YES- Power window serial link is OK.
NO- Diagnosis Procedure.
