Pinout Values and Diagnostic Parameters

AWD CONTROL UNIT

Reference Value

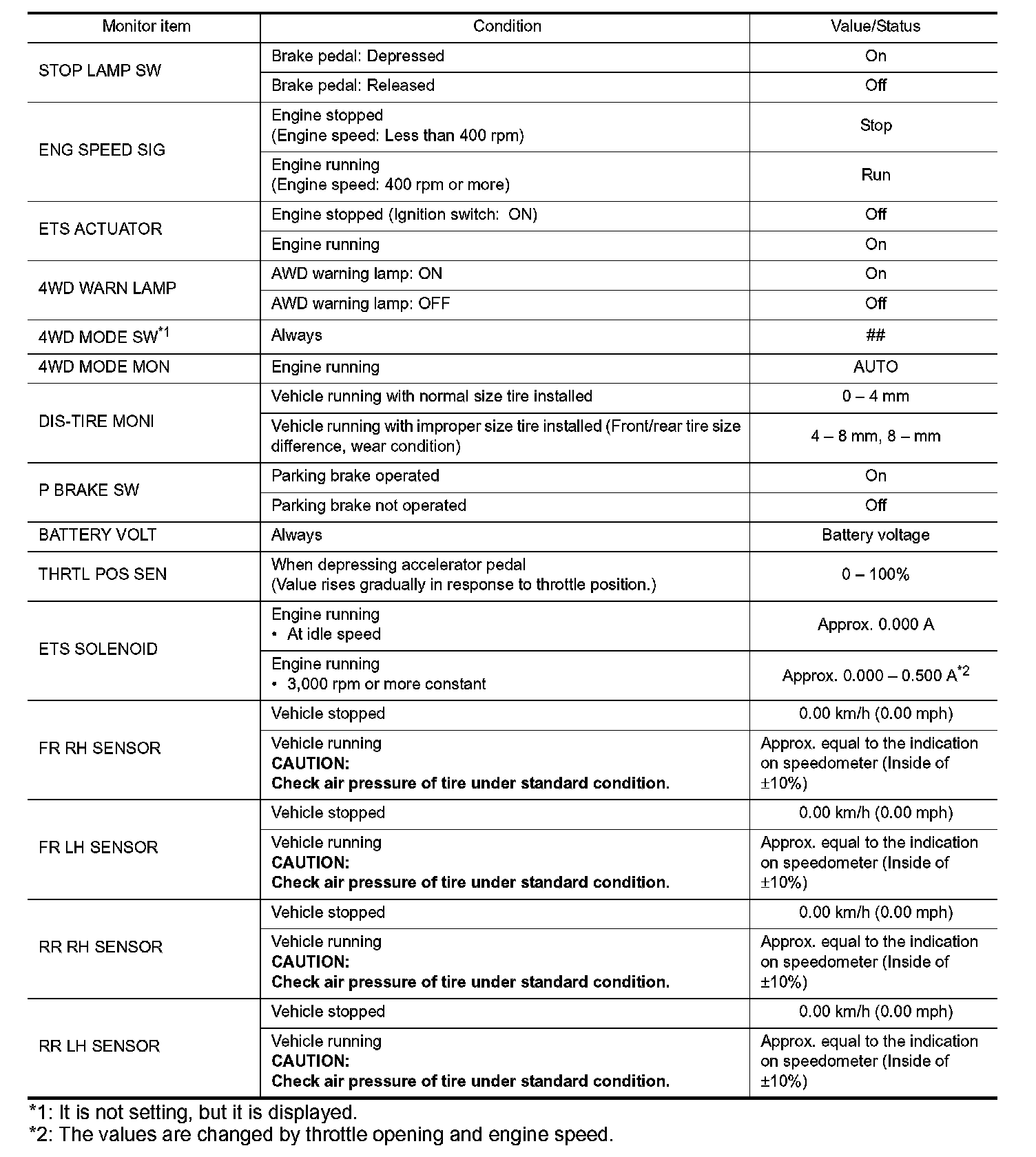

VALUES ON THE DIAGNOSIS TOOL






*1: It is not setting, but it is displayed.
*2: The values are changed by throttle opening and engine speed.

TERMINAL LAYOUT

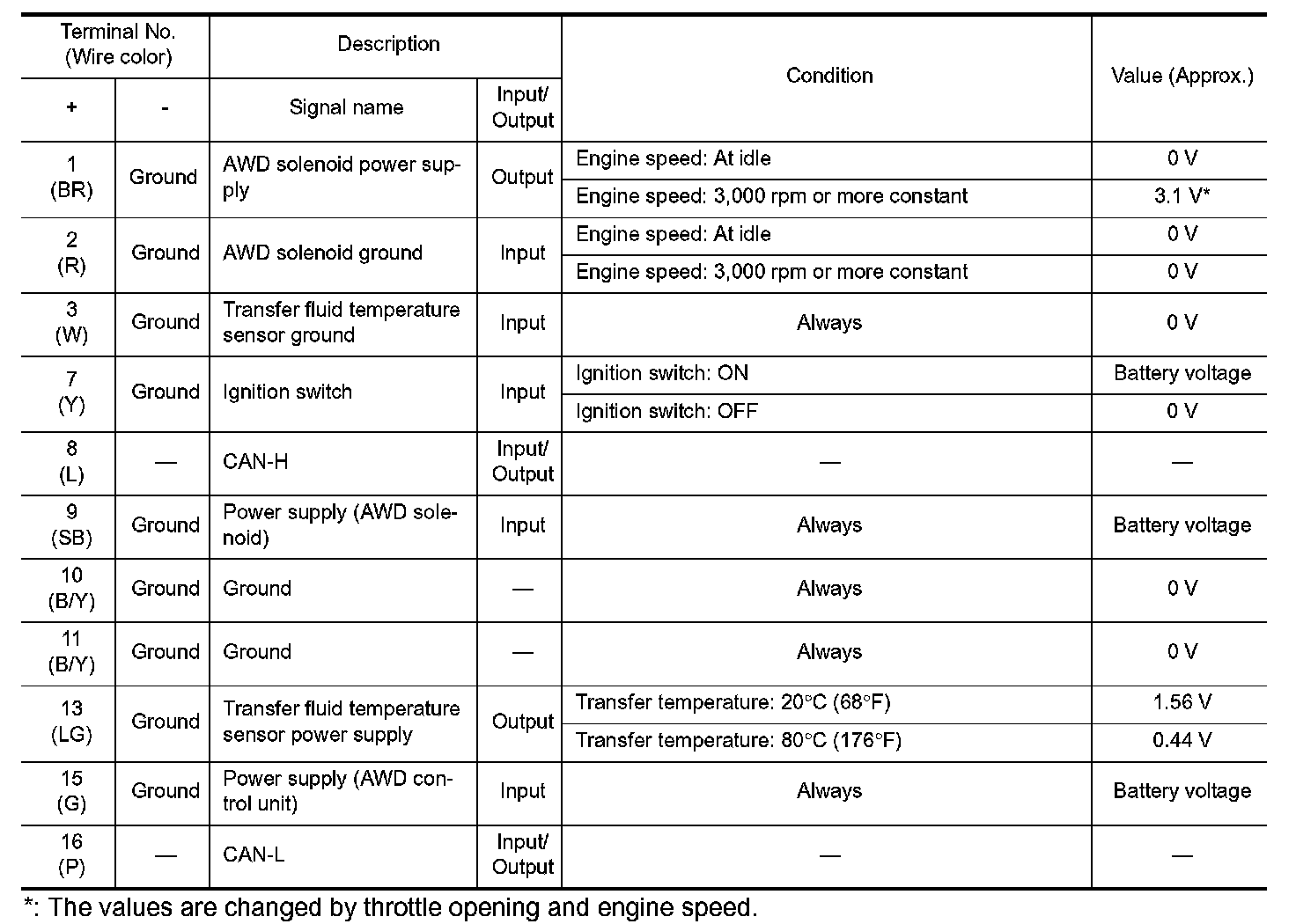

PHYSICAL VALUES






*: The values are changed by throttle opening and engine speed.

CAUTION:
When using circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
