Disassembly

SIDE SHAFT

Disassembly

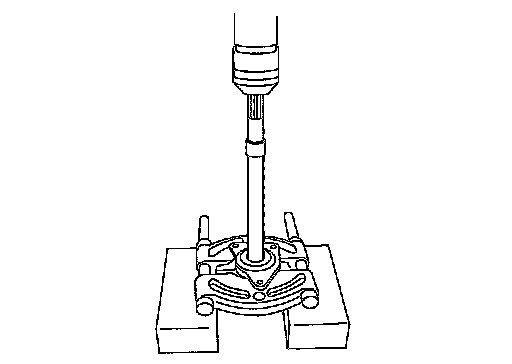

1.Hold extension tube retainer with puller (commercial service tool), then press out side shaft using a press.
2.Remove dust seal from side shaft.
3.Remove side shaft oil seal from extension tube retainer with a suitable tool.

CAUTION:
Never damage extension tube retainer.
4.Remove side shaft bearing from extension tube retainer.
5.Remove O-ring from extension tube retainer.
6.Perform inspection after disassembly. Inspection.
