Assembly

HIGH AND LOW REVERSE CLUTCH

Assembly

1.Install high and low reverse clutch component part (dish plate, drive plates, driven plates and retaining plate) to high and low reverse clutch drum.

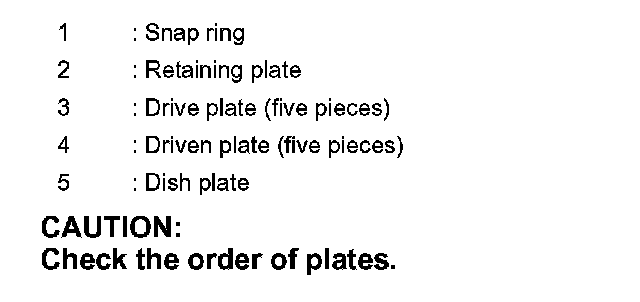

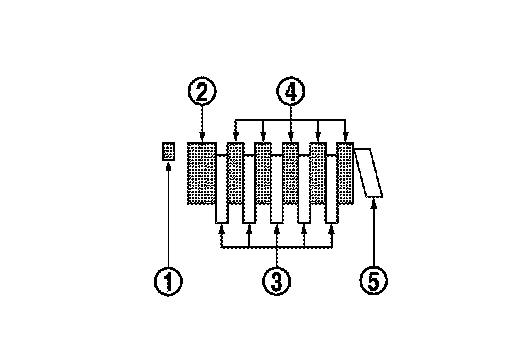

- VQ-37VHR models






CAUTION:
Check the order of plates.

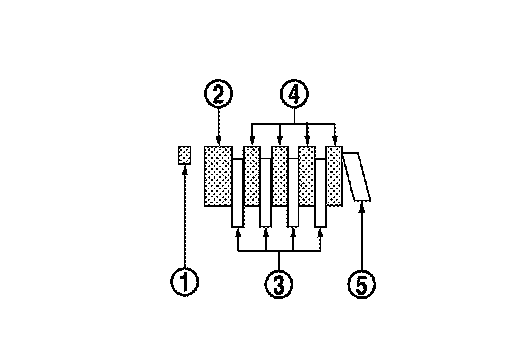

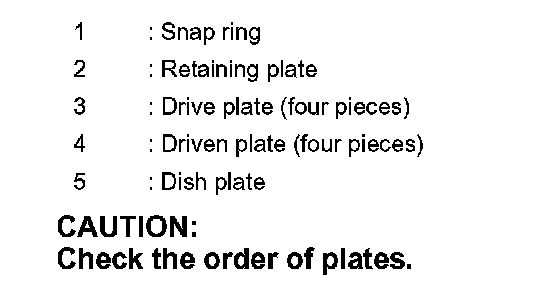

- VK-56VD models






CAUTION:
Check the order of plates.

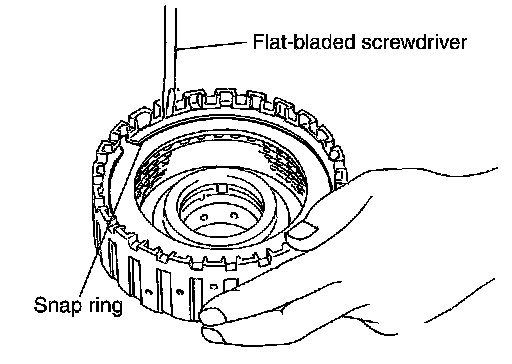

2.Install snap ring to high and low reverse clutch drum using a flat bladed screwdriver.

CAUTION:
- Be careful not to scratch high and low reverse clutch drum.
- Be careful not to damage snap ring.

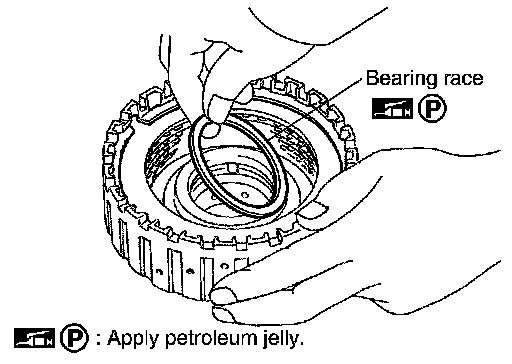

3.Install bearing race to high and low reverse clutch drum.

CAUTION:
Check the direction of needle bearing. Location Of Needle Bearings And Bearing Races.
