Assembly

DIRECT CLUTCH

Assembly

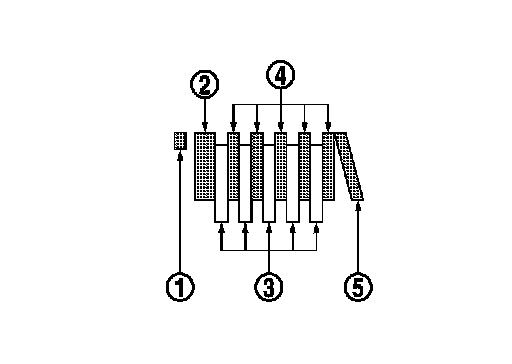

1.Install direct clutch component part (drive plates, driven plates, retaining plate and dish plate) to direct clutch drum.





- VQ-37VHR models






CAUTION:
Check the order of plates.





- VK-56VD models






CAUTION:
Check the order of plates.





2.Install snap rings to direct clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
